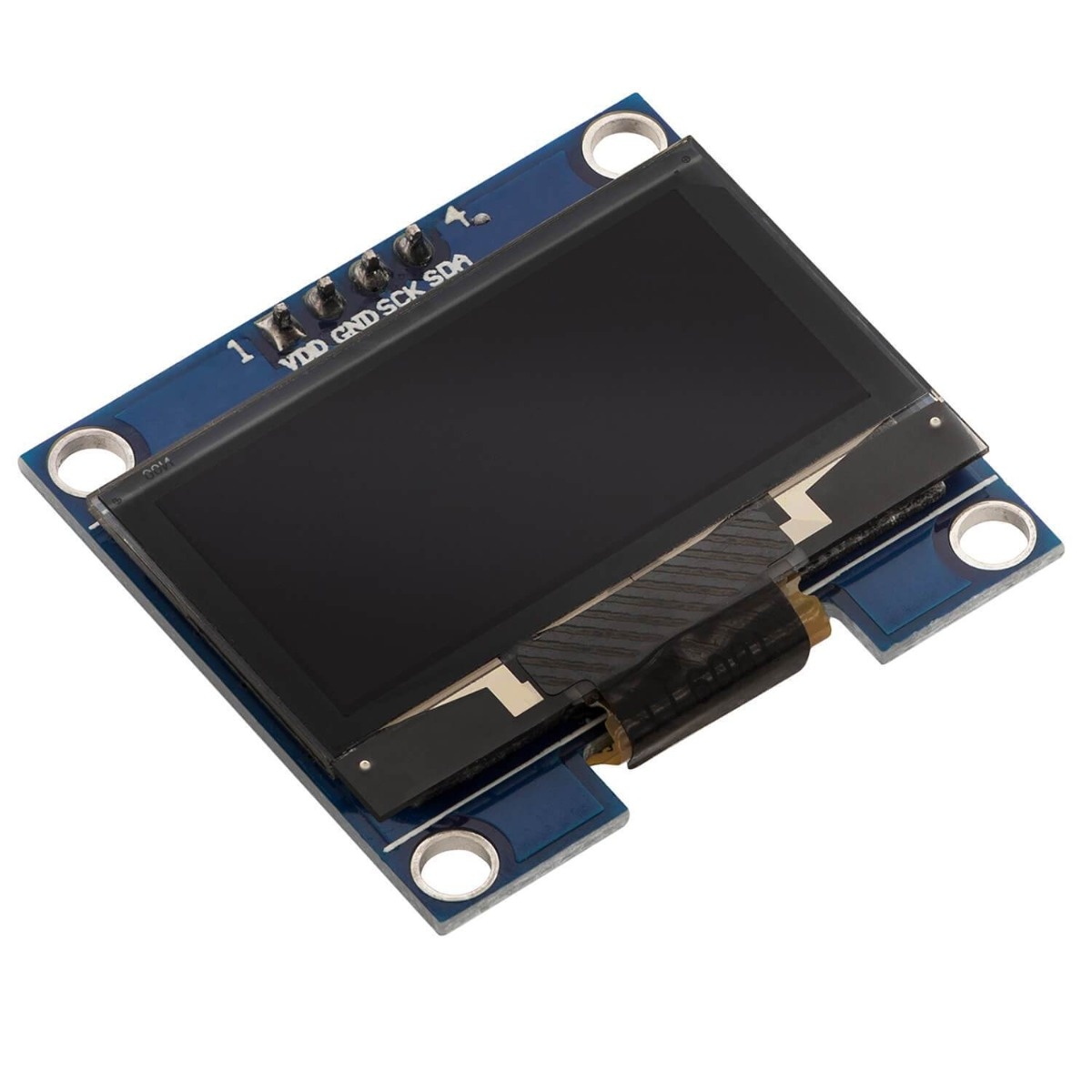

This 1.3 inch OLED Display Screen Module offers 128×64 pixel resolution. They are featuring much less thickness than LCD displays with good brightness and also produce better and true colors.
This OLED Display Module is very compact and will add a great ever user interface experience to your Arduino project. The connection of this display with Arduino is made through I2C interface.
The 1.3 Inch 128×64 OLED Display Screen Module produces white text on black background with very good contrast when supplied with DC 3.3V supply. The OLED Display Modules also offers a very wide viewing angle of about greater than 160°.
Specifications:
Controller: SH1106
Resolution: 128 x 64
Visual Angle: >160°
Input Voltage: 3.3V ~ 6V
Compatible I/O Level: 3.3V, 5V
Mini Size: 2.7 x 2.8cm
Pixel Color: White
Full Compatible with Arduino
Working temperature: -30°C ~ 70°C
Module volume ( generous ): 38.0 x 12.0 x 5mm
Package Includes:
1 x 1.3 Inch OLED Display White 128x64 for Arduino Raspberry Pi I2C
