Linear Motor offers linear actuation instead of rotational motion in normal electric motor. This Linear motor is generally less cumbersome than a cogged belt, simpler than a rack and pinion and more economical than a ball screw. It can be used in laboratory applications, industrial automation, and robotics. Examples:
Electric Adjustable Bed for patient
Electric Wheel Chair
Electric Adjustable Table
Electric Lift
Electric Massage Chair
Solar Panel Tracker

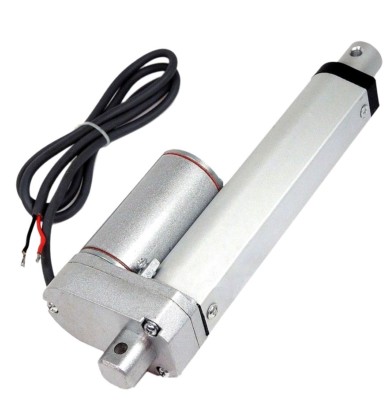

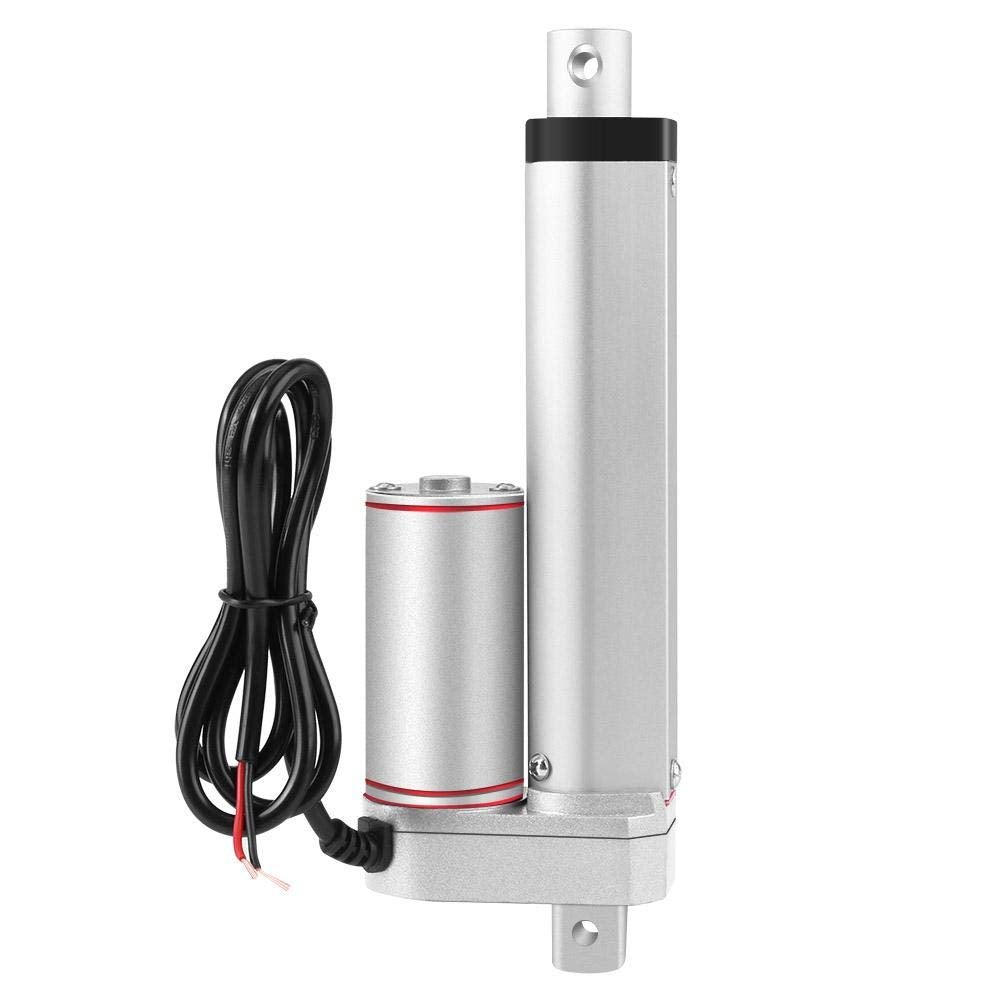

This linear motor is compact, self-locking, feature an ACME screw drive, an Aluminium alloy gear housing, aluminum extension and protection tubes, powder metal gears, and are ideally suited for off-highway equipment applications.
Voltage: 12VDC
Power: 25W
Current: 3A (Max)
Speed: 12mm/s
Auto-stopper at maximum and minimum length
Maximum Thrust = 650N
Extendable length = 100mm
Duty cycle = 10%
Operating temperature: -20ºC to +75ºC
Material: Aluminum Alloy
Protection standard: IP54
Metal gears for robust and durable usage
Stop at any length and auto-lock
Electrical protection: Over-Current protection, short-circuit protection
