DC Motor Driver Potentiometer & Switch Control 10 Amp 7V-30V

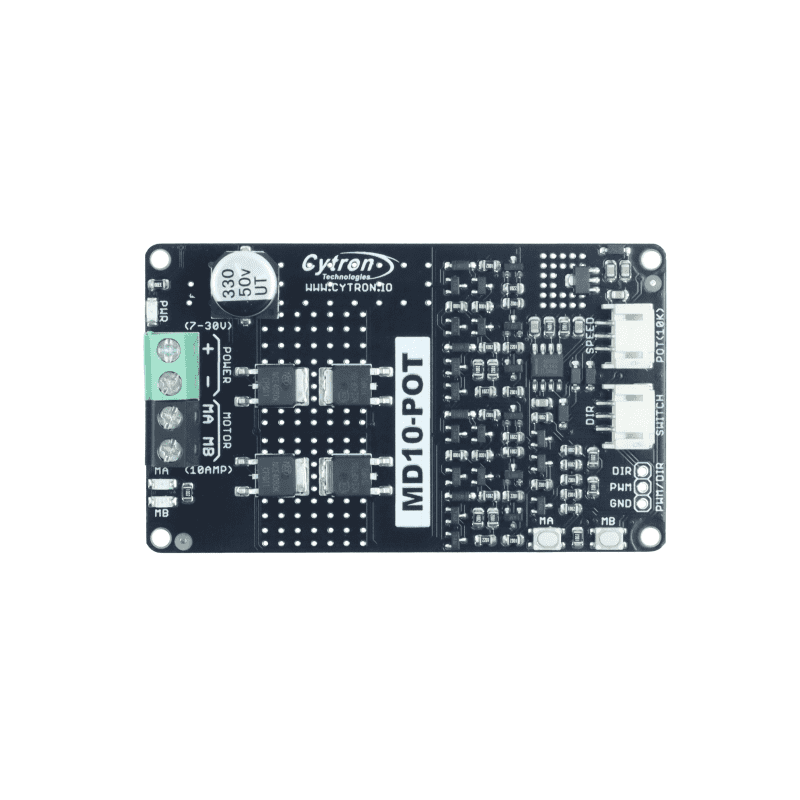

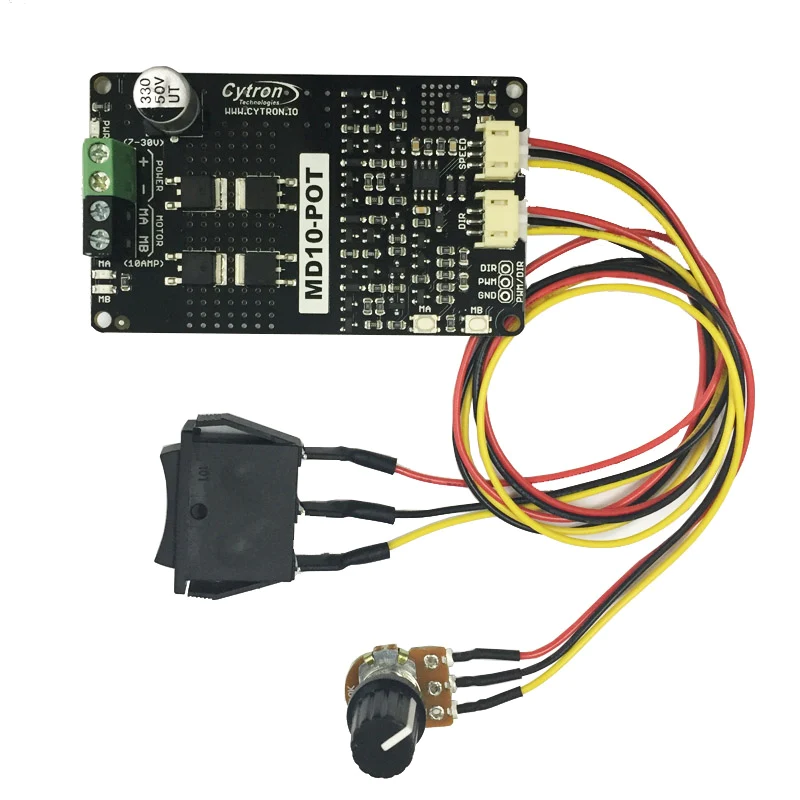

MD10-POT is a motor driver or speed controller that enables you to easily control a motor’s run/brake, direction and speed. No microcontroller is needed in a complete setup, hence programming is not required too. A DC brushed motor can be controlled directly using the Switch (Activation & Direction) and Potentiometer (Speed) included in the package. Control DC brushed motor’s direction (Clockwise / Counter-clockwise). Control DC brushed motor’s speed. Wiring: Features Bidirectional control for one brushed DC motor. Control motor run/brake and direction with a 3-way rocker switch (included in package). Control motor rotation speed with a potentiometer (included in package). Operating Voltage: DC 7V to 30V Maximum Motor Current: 10A continuous, 30A peak Buttons for quick testing. LEDs for motor output state. PWM and DIR inputs. Compatible with sign-magnitude and locked-antiphase PWM operation. Regenerative Braking. No reverse polarity protection. Dimension: 81.28mm x 48.26mm Packing List 1 x MD10-POT 1 x 10kOhm Potentiometer with connector 1 x 3-Way Rocker Switch with connector 1 x Quick Start Guide Card
