Everyone loves mobile robot! With PikaBot, you get to learn electronics, microcontroller, sensors, motors & coding, while having fun!
New to Mobile Robot & Coding?
Don’t worry! This kit comes with a booklet covering all the hands-on lessons you need to get started. Every step is explained clearly with the help of images. We make sure that the common issues when building and coding the Arduino mobile robot are properly addressed in this booklet. Besides it comes with fun facts to feed the curious minds too.
No Soldering! Just Jumper Wires

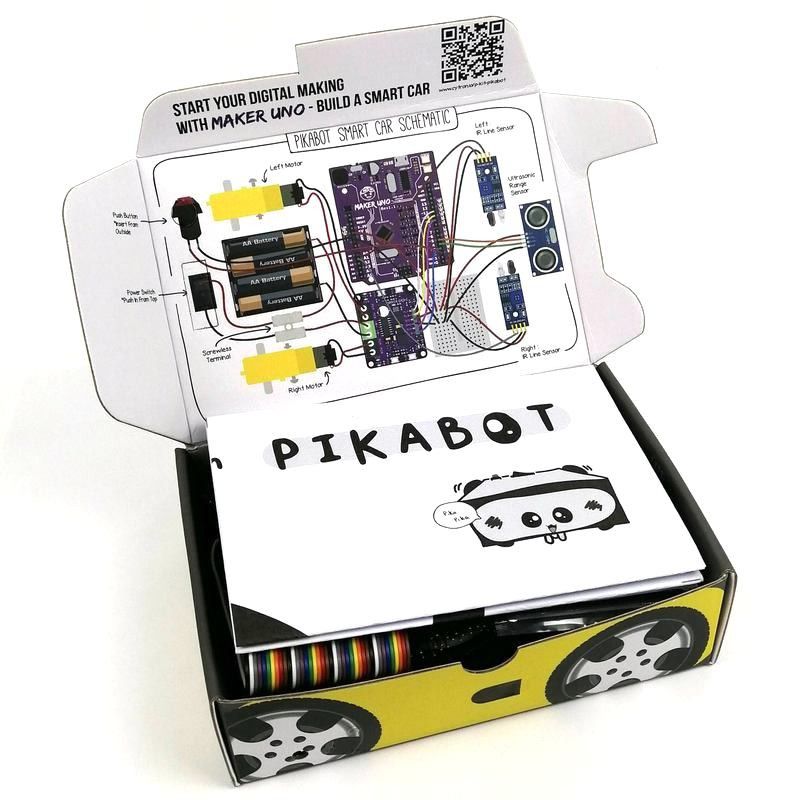

There is no soldering involved in order for more young makers to take part in the building process. To make things even simpler, the detailed schematic diagram and mounting location of the parts are printed inside the box. Hence you can build and connect with greater confidence as you embark on this digital making journey.
This mobile robot kit is based on Maker UNO (Arduino Uno compatible).
Box = Mobile Robot Base
We designed the packaging box of PikaBot to be reusable. Not only that it’s used for packing the complete set of components needed for the project, it serves as the robot base and cover of your PikaBot mobile robot too.

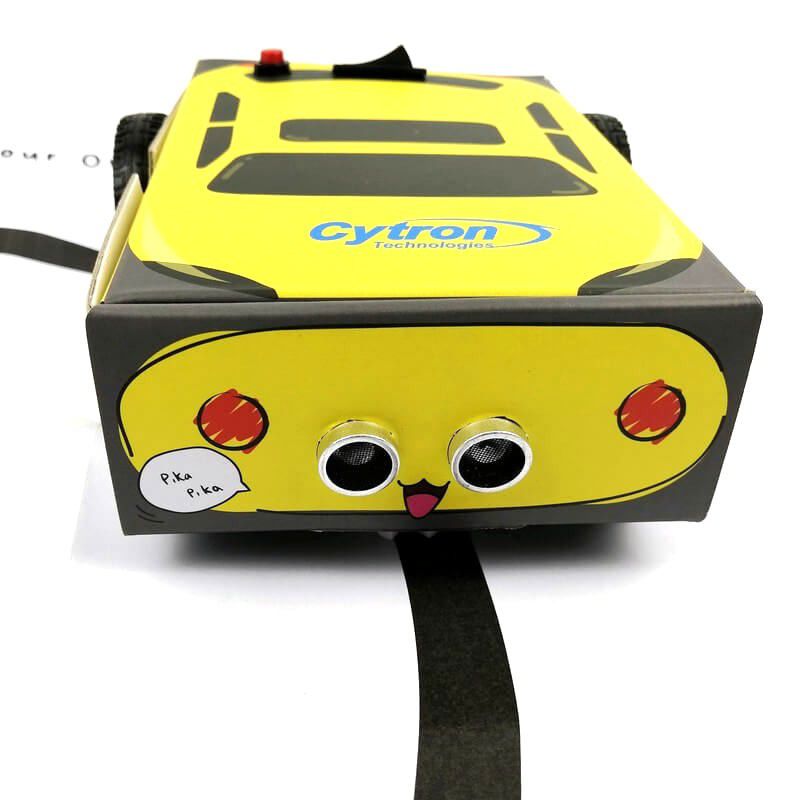

Line Following & Obstacle Avoidance
What can your PikaBot do? It can follow line, simple yet practical navigation that is widely used in AGV (Automated Guided Vehicle) and many robot competition. The kit comes with a pair of infrared sensors which you can calibrate & program to recognize black and white surfaces. PikaBot also includes an ultrasonic distance sensor so it can detect obstacles in front of it.
mBlock Graphical Programming Interface
Besides using the Arduino IDE as taught in our user guide booklet, you can also program PikaBot with mBlock block-based programmming interface. Check out this tutorial to learn more.
With the beginner-friendly Maker UNO as the controller, everyone can build and program this mobile robot. We have also included
Dual-channel motor driver
Two “TT” brush motor with pre-solder wires
4 x AA battery to power the controller and motor
Of course, it comes with two IR Line Tracking Module for line following
An Ultrasonic Distance Sensor for obstacle avoidance
Accessories for the smart car to work 🙂
Everything is packed in a nicely designed paper box which will be utilized as the base of the mobile robot too
To make life even easier, we have prepared:
A printed copy of Step by Step Guide for you to build this kit (Softcopy here)
Sample code for line following, obstacle avoidance and melody in Arduino Sketch in Github (coming soon)
Video to assemble the robot is in the making, check it out (coming soon)
Line Following Track for line following.
Features:
Mobile Robot Kit
Do It Yourself (DIY) mobile robot kit
No soldering needed, only requires to connect jumper wires 🙂
Controller: Maker UNO
Motor Driver: Maker Drive dual-channel DC brush motor driver
Driven by two TT motor with pre-solder wires
Power both controller and motor with 4 x AA battery, with battery holder too
Comes with IR Line Sensor module, for line following
Open-source example code, free to modify and learn coding
Panel mount rocker switch as power activation switch
Panel mount push button as a start button
The paper box is creatively designed as the container and also body for mobile robot.
Everything needed is packed in this kit!
Box Dimension: 127mm x 55mm x 19mm (not including motor shafts and wheels)

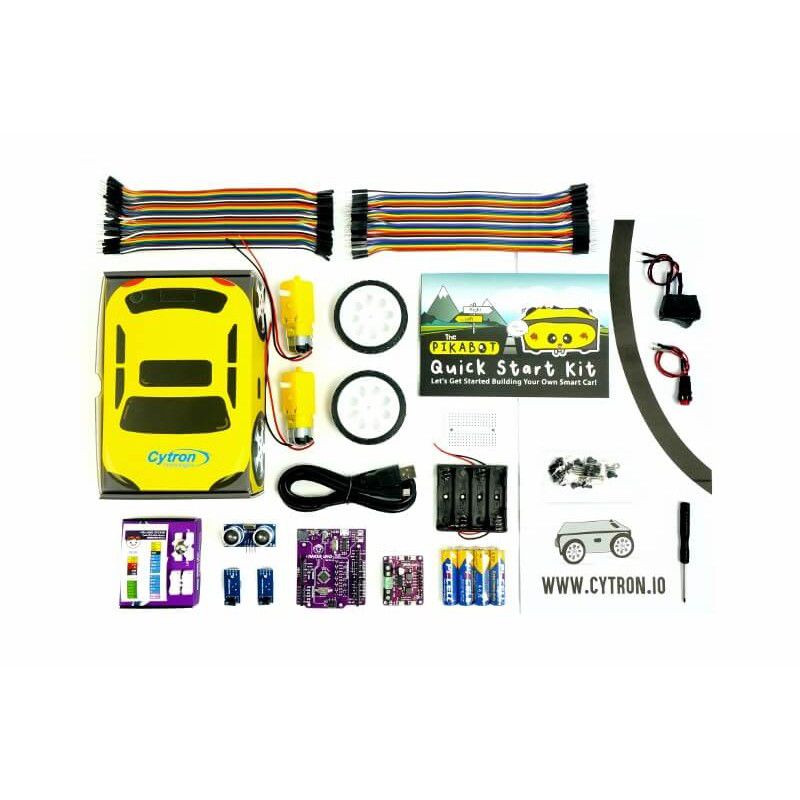

Packing List:
1 x Maker UNO (Simplifying Arduino for Education)
1 x Maker Drive: Dual H-Bridge Motor Driver for Beginner
2 x 3 – 6VDC Dual Axis TT Gear Motor (with pre-solder wires)
2 x Rubber Wheel for TT Gear Motor (63mm x 15mm)
2 x IR Line Tracking Module
1 x HC-SR04 Ultrasonic Ranging Module
1 x 4xAA Batteries
1 x 4xAA battery holder
1 x Breadboard Mini (35mmx42mm) – White
1 x 40 ways Male to Female Jumper Wire
1 x 40 ways Male to Male Jumper Wire
1 x USB Micro B cable
1 x mBot N20 Vacuum Steel Ball Castor
1 x Tiny Phillips Screwdriver – 85mm
4 x Bolt M3x25mm
4 x M3 Nut
1 x CH2 Quick Wiring Terminal Press Type
1 x Rocker Switch with wires
1 x Push Button with wires
14 x Plastic Rivet (M3)
2 x Plastic Rivet (M4)
1 x PikaBot Track
