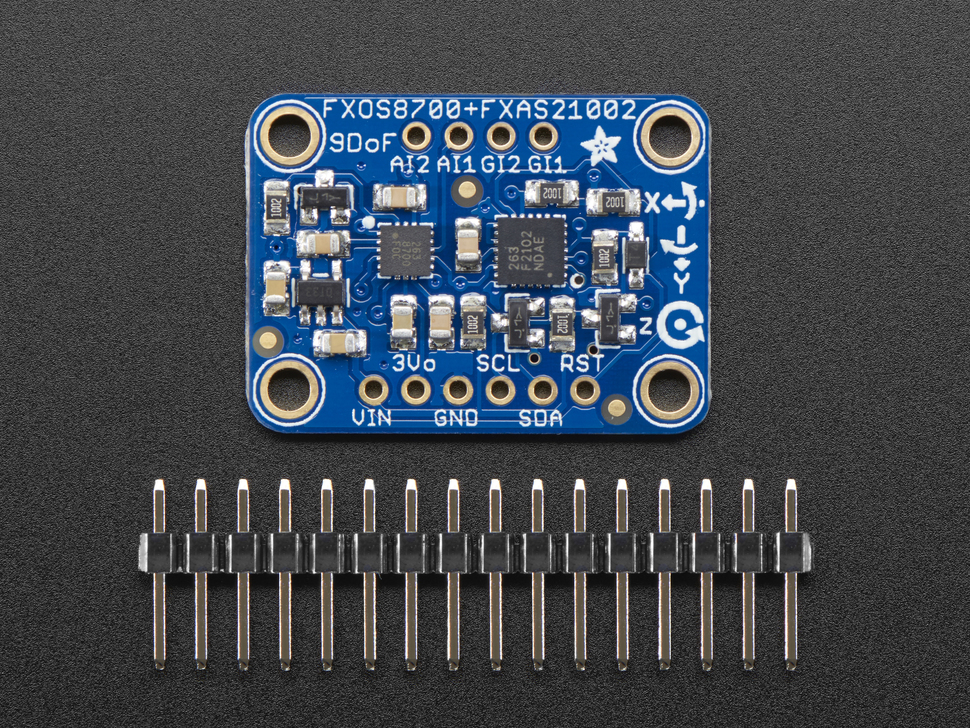

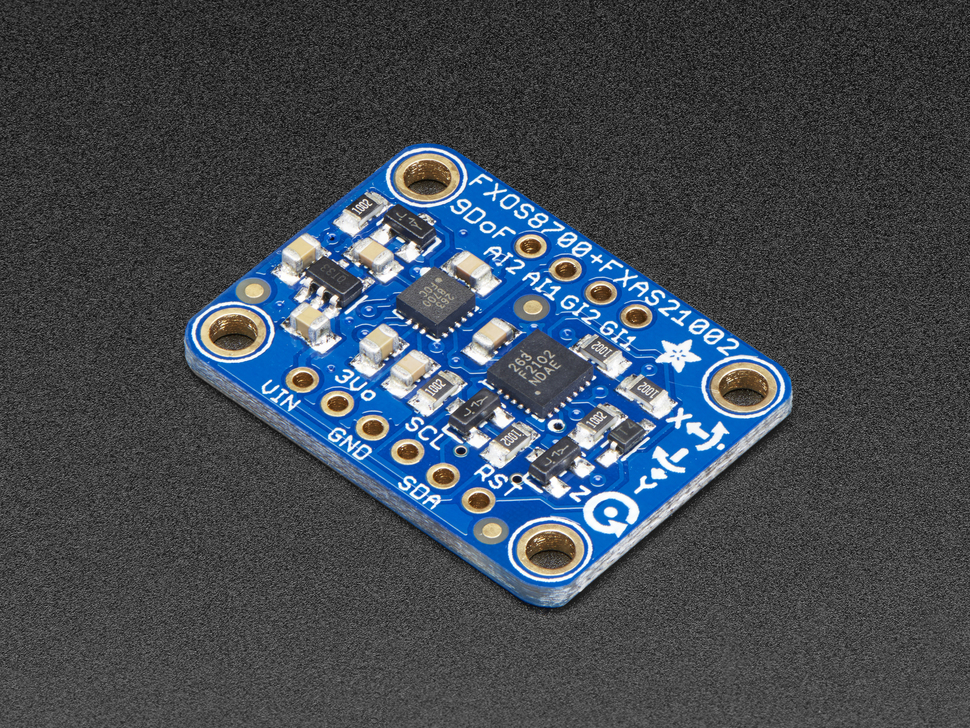

The NXP Precision 9DoF board consists of two separate ICs, described in detail below:
FXOS8700 3-Axis Accelerometer/Magnetometer
2-3.6V Supply
±2 g/±4 g/±8 g adjustable acceleration range
±1200 µT magnetic sensor range
Output data rates (ODR) from 1.563 Hz to 800 Hz
14-bit ADC resolution for acceleration measurements
16-bit ADC resolution for magnetic measurements
FXAS21002 3-Axis Gyroscope
2-3.6V Supply
±250/500/1000/2000°/s configurable range
Output Data Rates (ODR) from 12.5 to 800 Hz
16-bit digital output resolution
192 bytes FIFO buffer (32 X/Y/Z samples)
Datasheets, PCB CAD files, and Fritzing objects available in tutorial
Product Dimensions: 28.3mm x 20.5mm x 3.0mm / 1.1″ x 0.8″ x 0.1″
Product Weight: 2.1g / 0.1oz
