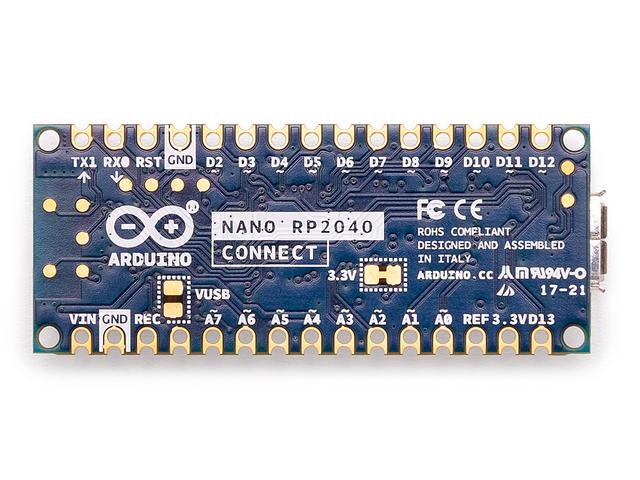

Arduino Nano RP2040 Connect

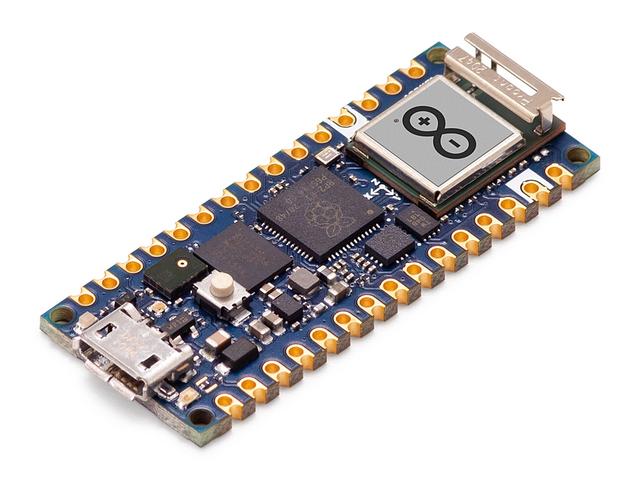

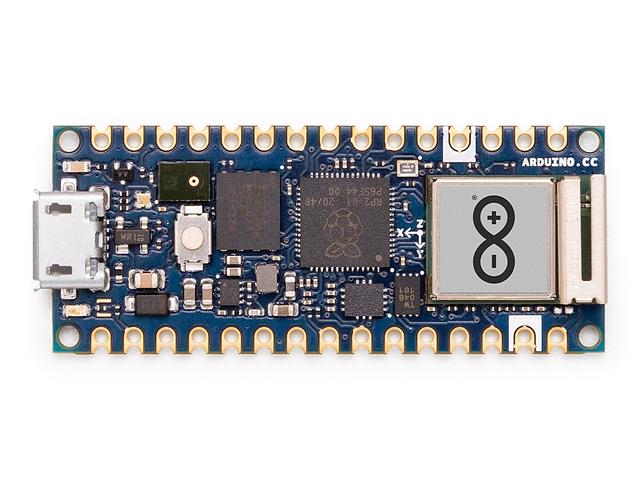

Meet the only connected RP2040 board. It fits the Arduino Nano form factor, making it a small board with BIG features. The brain of the board is the Raspberry Pi RP2040 silicon; a dual-core Arm Cortex M0+ running at 133MHz. It has 264KB of SRAM, and the 16MB of flash memory is off-chip to give you extra storage. But what’s really exciting is the on-board connectivity options. The hugely popular and highly adaptable u-blox NINA-W102 radio module is on there to make this a true IoT champion. This also means you can harness the power of the cloud, with fully Arduino Cloud compatibility. It’s got on-board, built-in sensors to turn your builds into powerhouse projects, too. Microphone and motion sensing add a depth of possibilities that’s almost impossible to find in a board of this size. The Arduino Nano RP2040 Connect is the premium choice for RP2040 devices, and the perfect option for upgrading your projects and unlocking the potential of new ones. Meet the only connected RP2040 board. It fits the Arduino Nano form factor, making it a small board with BIG features. The brain of the board is the Raspberry Pi RP2040 silicon; a dual-core Arm Cortex M0+ running at 133MHz. It has 264KB of SRAM, and the 16MB of flash memory is off-chip to give you extra storage. But what’s really exciting is the on-board connectivity options. The hugely popular and highly adaptable u-blox NINA-W102 radio module is on there to make this a true IoT champion. This also means you can harness the power of the cloud, with fully Arduino Cloud compatibility. It’s got on-board, built-in sensors to turn your builds into powerhouse projects, too. Microphone and motion sensing add a depth of possibilities that’s almost impossible to find in a board of this size. The Arduino Nano RP2040 Connect is the premium choice for RP2040 devices, and the perfect option for upgrading your projects and unlocking the potential of new ones. Get Connected The u-blox NINA-W102 radio module makes this the only connected RP2040 option. It gives you full WiFi 802.11b/g/n connectivity, along with Bluetooth® and BLE v4.2 Sensor Overload Packed onto this tiny board are a couple of very useful sensors. A built-in mic is there for sound activation, audio control and even AI voice recognition. The six-axis smart IMU with AI capabilities tells the board which way it’s moving, and adds fall sensing and double-tap activation. Hard Working Hardware It might be a small board, but the Nano RP2040 Connect packs a hardware punch. It matches the established Arduino Nano form factor, making it the perfect upgrade for projects of all sizes. More Memory With 16MB flash memory that’s external to the microprocessor, there’s bags of room for your code and storage needs. Power Pins The programmable I/O pins have functions that bigger boards only dream of; 22 digital, 20 with PWM and 8 analog. Raspberry Pi Pico Compatible Smart software options for a very smart device. It has full support for the entire RP2040 software ecosystem. Arduino Lover Supports the Arduino programming language, the IDE 2.0 and all those awesome libraries. Python Power Full support for MicroPython (available in September, 2021). Get a Nano RP2040 Connect, and it comes with a FREE OpenMV license for machine vision projects. Arduino Cloud Ready Program and operate the Nano RP2040 Connect directly from your web browser. Fully compatible from day one. Upload your sketches over-the-air with instant remote control from the free Arduino IoT Remote smartphone app. Tech specs BOARD Nano RP2040 Connect SKU: ABX00052 MICROCONTROLLER Raspberry Pi RP2040 USB CONNECTOR Micro USB PINS Built-in LED pin 13 DIGITAL I/O PINS 20 ANALOG INPUT PINS 8 PWM PINS 20 (Except A6, A7) EXTERNAL INTERRUPTS 20 (Except A6, A7) CONNECTIVITY Wi-Fi Nina W102 uBlox module BLUETOOTH Nina W102 uBlox module SECURE ELEMENT ATECC608A-MAHDA-T Crypto IC SENSORS IMU LSM6DSOXTR (6-axis) MICROPHONE MP34DT05 COMMUNICATION UART Yes I2C Yes SPI Yes POWER Circuit operating voltage 3.3V INPUT VOLTAGE (VIN) 5-21V DC CURRENT PER I/O PIN 4 mA CLOCK SPEED Processor 133 MHz MEMORY AT25SF128A-MHB-T 16MB Flash IC NINA W102 UBLOX MODULE 448 KB ROM, 520KB SRAM, 16MB Flash DIMENSIONS Weight 6 g WIDTH 18 mm LENGTH 45 mm
