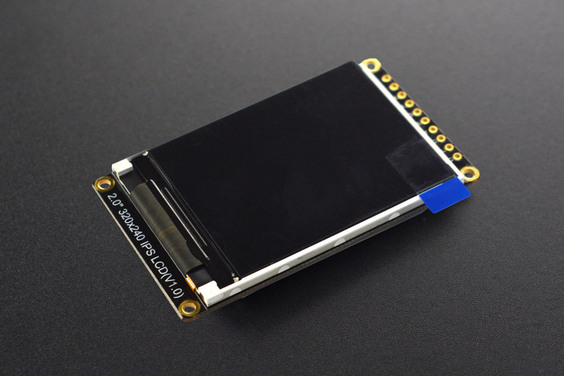

LCD Display 2.0 Inch 320×240 IPS TFT with MicroSD Card

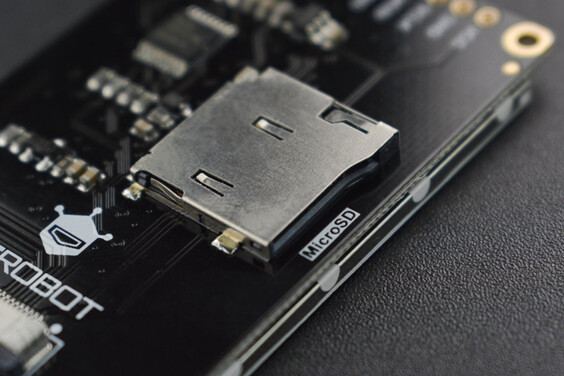

This 2.0” LCD display adopts ST7789V driver chip and has 320*240 color pixels (RGB565), performing excellently in the angle of view (80/80/80/80). It supports SPI(4-wire) communication mode and GDI port (work with main-controllers with GDI), plug, and play. The module can be powered by 3.3V~5V, compatible with multiple main-controllers like Arduino UNO, Leonardo, ESP32, ESP8266, FireBeetle M0, and so on. Use the GDI interface to work with M0, which could effectively reduce wiring steps. Besides, there is an onboard MicroSD card slot for displaying more pictures. The module has the advantages of high resolution, wide viewing angle, and simple wiring, and can be used in many display applications: waveform monitor display, electronic gift box, electronic weather decorations, etc. FEATURES Wide-angle of view High resolution GDI interface: plug and play Onboard MicroSD card slot APPLICATIONS Waveform monitor display Electronic gift box Electronic weather decorations Alarm clock display SPECIFICATION Operating Voltage: 3.3V-5.5V Color Depth: 16-bit (RGB565) Pixels: 240 x 320 Communication: SPI Brightness(cd/m2): 250 (TYP) cd/m2 Full-screen Consumption: about 29mA (3.3V)/ 29mA (5V)(Typ) Operating Temperature: -30℃~+70℃ Display Dimension: 1.20 x1.61inch / 30.6 x 40.8 mm Module Dimension: 1.41×2.36inch / 35.70 x 60.00 mm Mount Hole Diameter: 2mm Weight:26g
