This Gravity: Analog pH Sensor/Meter Kit V2 is specifically designed to measure the pH of the solution and reflect the acidity or alkalinity. It is commonly used in various applications such as aquaponics, aquaculture, and environmental water testing.

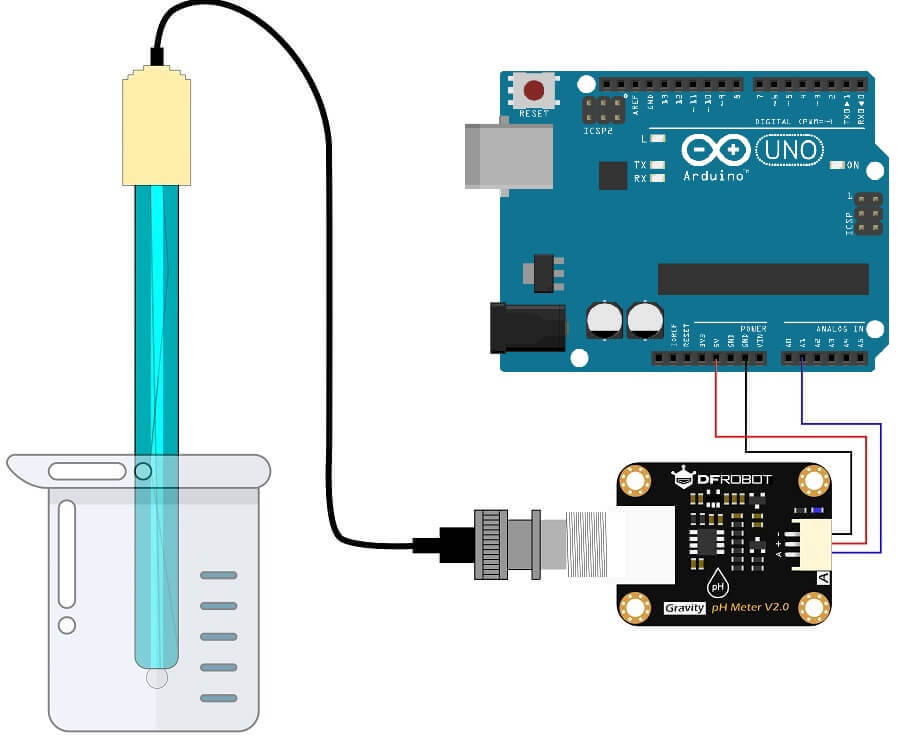

This product greatly improves the precision and user experience. The onboard voltage regulator chip supports the wide voltage supply of 3.3~5.5V, which is compatible with 5V and 3.3V main control board. The output signal filtered by hardware has low jitter. The software library adopts the two-point calibration method, and can automatically identify two standard buffer solutions (4.0 and 7.0), so simple and convenient. With this product, main control board (such as Arduino) and the software library, you can quickly build the pH meter, plug and play, no welding.
The pH is a value that measures the acidity or alkalinity of the solution. It is also called the hydrogen ion concentration index. The pH is a scale of hydrogen ion activity in solution. The pH has a wide range of uses in medicine, chemistry, and agriculture. Usually, the pH is a number between 0 to 14. Under the thermodynamic standard conditions, pH=7, which means the solution is neutral; pH7, which means the solution is alkaline.
The pH is a value that measures the acidity or alkalinity of the solution. It is also called the hydrogen ion concentration index. The pH is a scale of hydrogen ion activity in solution. The pH has a wide range of uses in medicine, chemistry, and agriculture. Usually, the pH is a number between 0 to 14. Under the thermodynamic standard conditions, pH=7, which means the solution is neutral; pH7, which means the solution is alkaline.
Features
3.3V / 5V wide voltage input
Hardware filtered output signal, low jitter
Gravity connector and BNC connector, plug and play, no welding
Software library supports two-point calibration, and automatically identifies standard buffer solution
Uniform size and connector, convenient for the design of mechanical structures
Specifications:
Signal Conversion Board (Transmitter) V2
Supply Voltage: 3.3~5.5V
Output Voltage: 0~3.0V
Probe Connector: BNC
Signal Connector: PH2.0-3P
Measurement Accuracy: ±0.1@25℃
Dimension: 42mm*32mm/1.66*1.26in
pH Probe
Probe Type: Laboratory Grade
Detection Range: 0~14
Temperature Range: 5~60°C
Zero Point: 7±0.5
Response Time: <2min
Internal Resistance: 0.5 year (depending on frequency of use)
Cable Length: 100cm
Packing List
1 x pH Probe(Laboratory Grade)
1 x pH Signal Conversion Board
1 x Gravity Analog Sensor Cable
2 x pH Standard Buffer Solution 4.0
2 x pH Standard Buffer Solution 7.0
2 x Waterproof Gasket
1 x Screw Cap for BNC Connector
4 x M3 nylon pillar
8 x M3 screw
