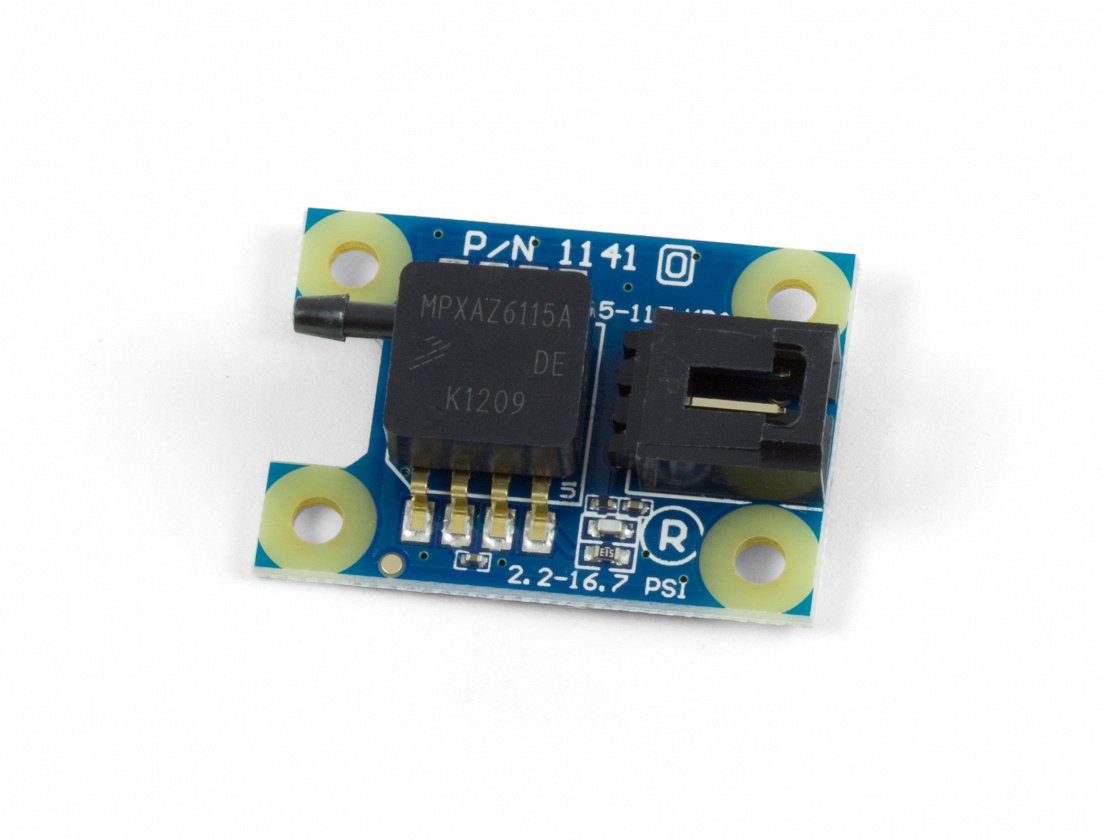

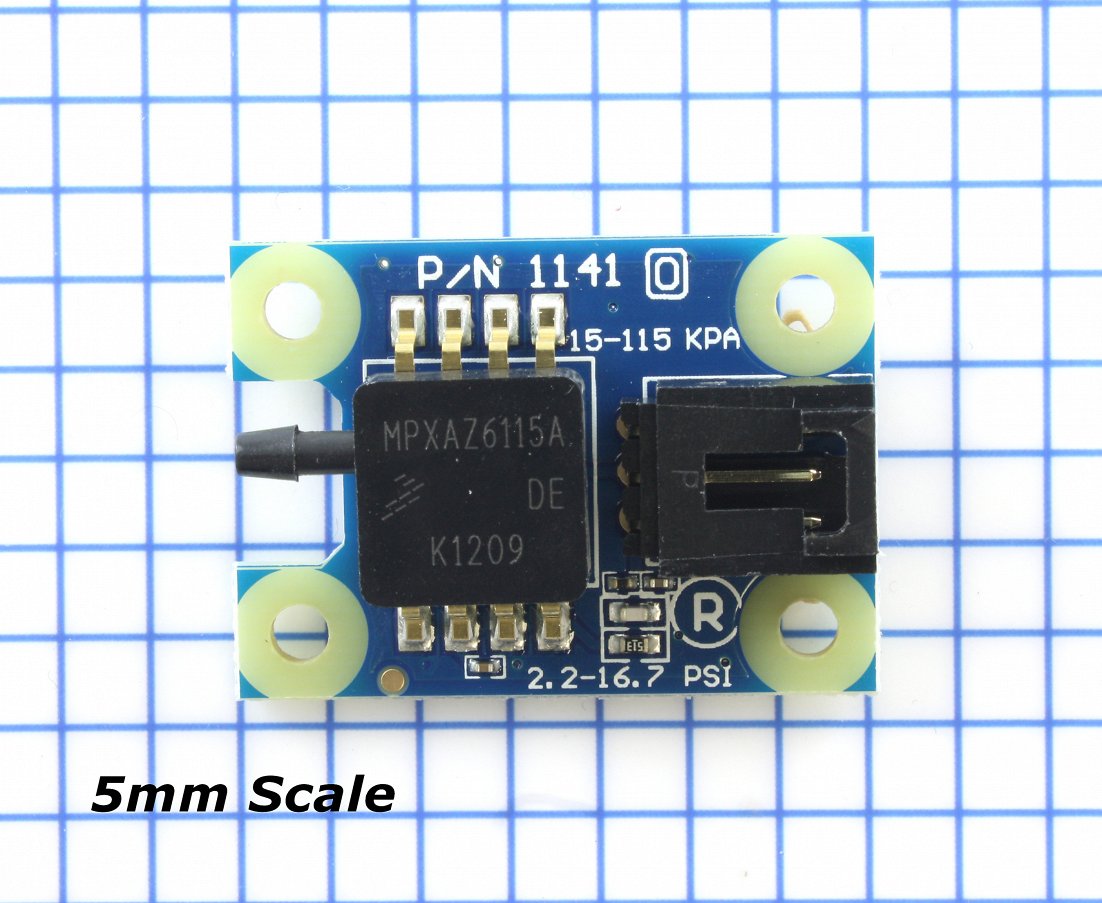

The 1141 Absolute Pressure Sensor is an air pressure sensor that measures the absolute pressure of its environment. It can measure pressures from 15 kPa to 115 kPa.
Product Specifications
Sensor Properties
Controlled By VoltageRatio Input
Sensor Type Gas Pressure (Absolute)
Sensor Output Type Ratiometric
Pressure Min 15 kPa
Pressure Max 115 kPa
Case Pressure Max 400 kPa
Pressure Resolution 111 Pa
Measurement Error Max ± 1.5 %
Warm-up Time 20 ms
Response Time Max 1 ms
Electrical Properties
Supply Voltage Min 4.8 V DC
Supply Voltage Max 5.3 V DC
Current Consumption Max 10 mA
Output Impedance 1 kΩ
Output Voltage Min 200 mV DC
Output Voltage Max 4.8 V DC
Physical Properties
Operating Temperature Min -40 °C
Operating Temperature Max 125 °C
Recommended Tubing Size 3⁄32″
