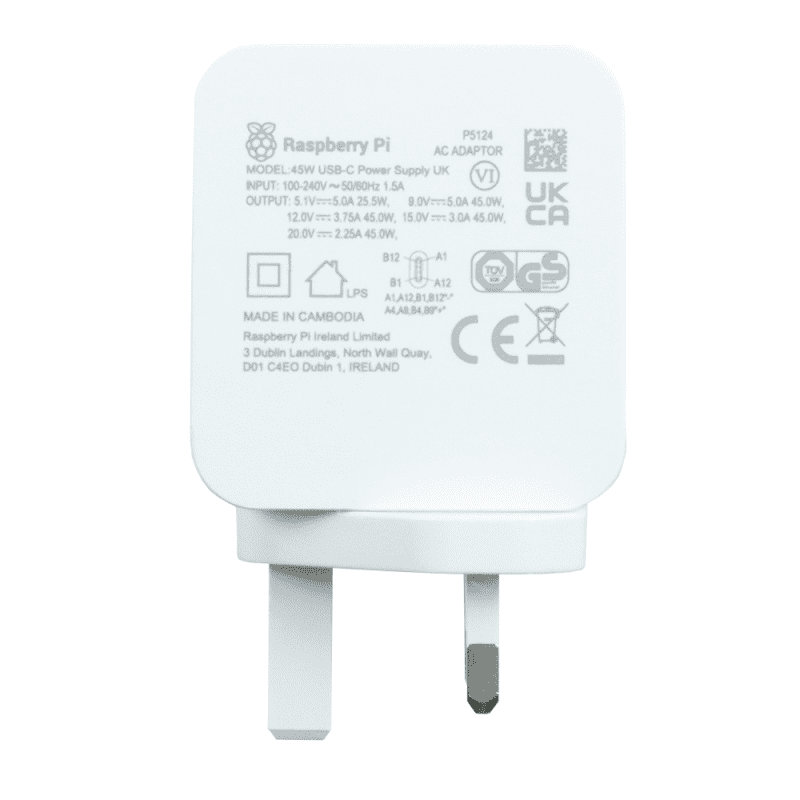

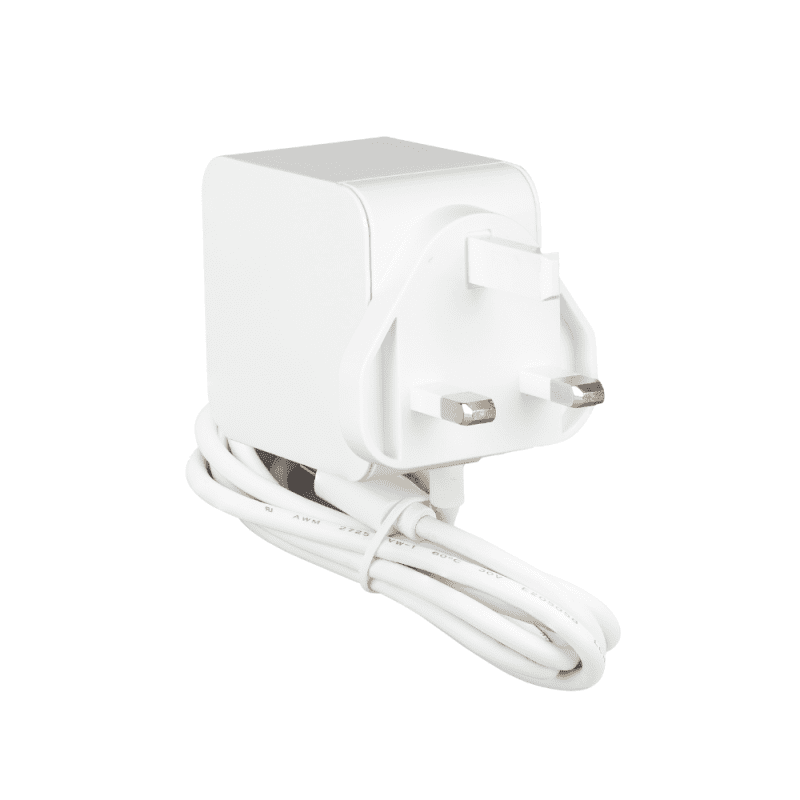

The Raspberry Pi 45W USB-C Power Supply expands the lineup of high-quality power supplies. Designed to complement both Raspberry Pi’s own products and third-party devices, it delivers reliable 45W power. This power supply comes with a UK plug
USB type C plug, for the latest Raspberry Pi 5 and Raspberry Pi 4B
Fixed Main Adapter (NOT interchangeable)
UK Plug Type
White Color
Short circuit, over-current, and over-voltage protection
5.1V output, 5.0A max output, perfect for long cable and high ampere usage
Support Power Delivery (PD)
45W Max Output Power
Universal AC power input, 100-240VAC, 50/60Hz
Efficiency: 72% to 81%
An official PSU from the Raspberry Pi Foundation
Specifications:
Output:
Output via USB-C:
5A@5.1V
5A@9V
3.75A@12V
3.0A@15V
2.25A@20V
Maximum power: 45W
Load regulation: ±5%
Line regulation: ±2%
Ripple & noise: 120mVp-p
Rise time: 100ms maximum to regulation limits for DC outputs
Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
Efficiency:
81% minimum (output current from 100%, 75%, 50%, 25%)
72% minimum at 10% load
Output cable: 1.5m (17AWG)
Output connector: USB Type-C
Input:
Voltage range:
100-240VAC (rated)
96-264VAC (operating)
Frequency: 50/60Hz ±3Hz
Current: 5A maximum
Power consumption (no load): 0.075W maximum
Inrush current: No damage shall occur and the input fuse shall not blow
Packing List
1 x Raspberry Pi USB-C PD (Power Delivery) 45W PSU
