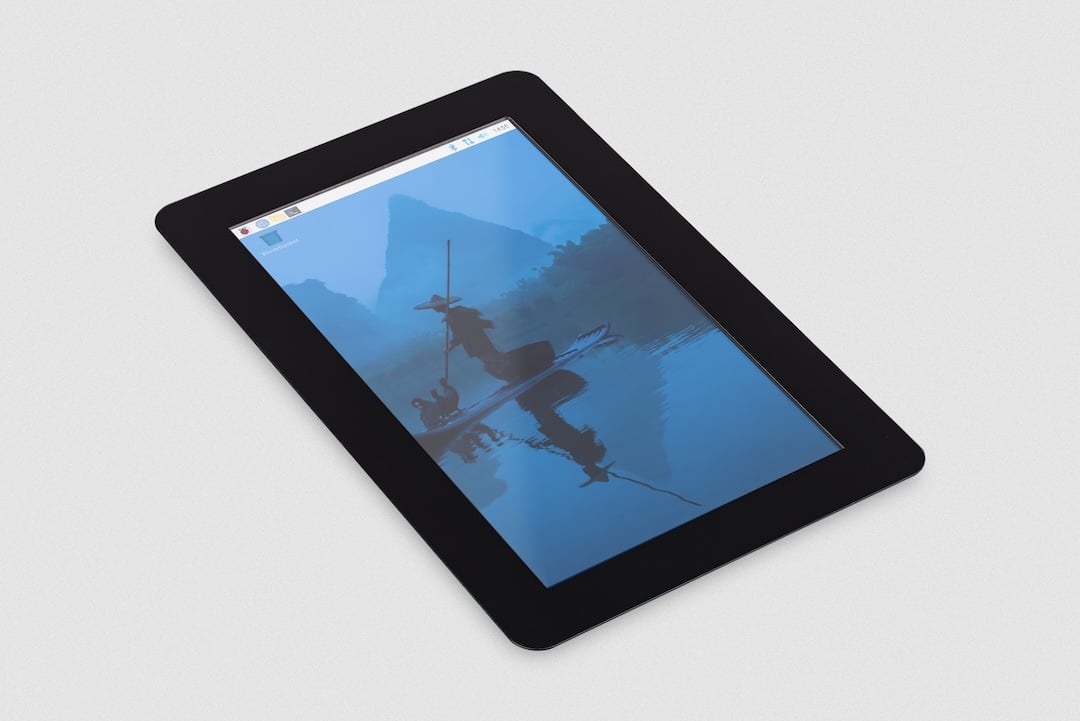

Raspberry Pi Touch Display 2 is a 7′′ touchscreen display for Raspberry Pi with a 720×1280 resolution, ideal for interactive projects such as entertainment systems, home automation and information dashboards – or simply used as a compact monitor for your Raspberry Pi OS desktop!
Raspberry Pi OS provides touchscreen drivers with support for five-finger capacitive touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.
Only two connections are required to connect the display to your Raspberry Pi: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers (except for the Raspberry Pi Zero and Pi 400 line). The Raspberry Pi provides power to the display – no separate power supply is required.
Please note: cases and enclosures designed for the original Raspberry Pi 7″ Touchscreen display will not fit the new Touch Display 2 (as the new display is slightly smaller with a slightly different glass position).
Raspberry Pi board not included.
Features
Touchscreen display for Raspberry Pi
Compatible with all Raspberry Pi boards with a DSI connector
7″ display
Portrait 720×1280 resolution (can be changed to landscape in software)
Five-finger true multi-touch
Capacitive touch
Anti-glare surface treatment
Powered directly by the host Raspberry Pi, no separate power supply required
Rear mounting points for Raspberry Pi boards (fixings included)
Not compatible with enclosures designed for the original/older Raspberry Pi touch display
Specifications
Size: 189.32mm x 120.24mm
Display size (diagonal): 7″
Display format 720 (RGB) x 1280 pixels
Active area: 88mm x 155mm
LCD type: TFT, normally white, transmissive
Colour configuration: RGB-stripe
Backlight type: LED B/L
Production lifetime: The touch display will remain in production until at least January 2030
