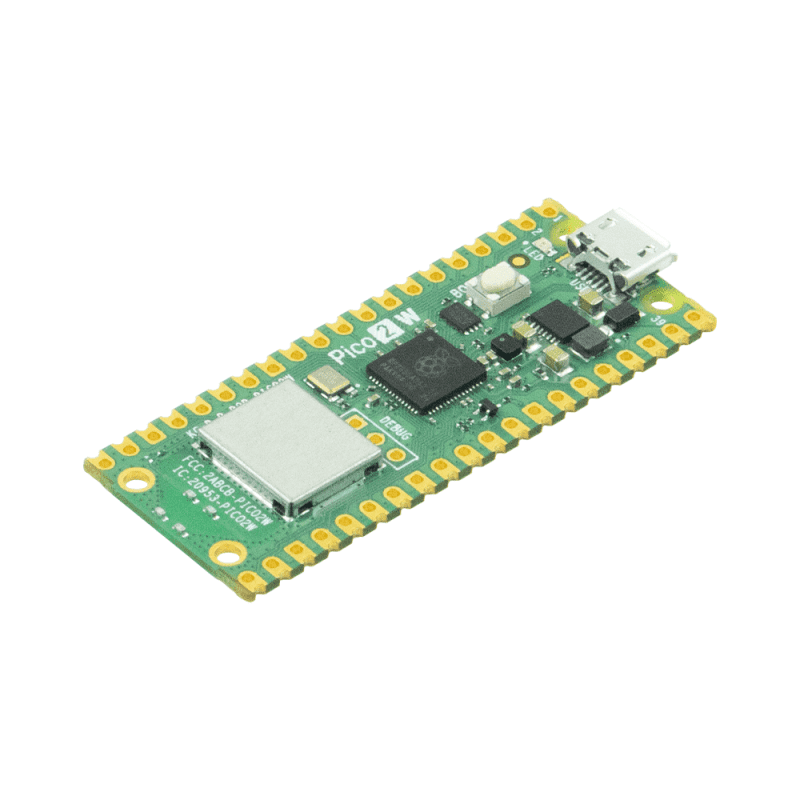

Raspberry Pi Pico 2W

Raspberry Pi Pico 2W Raspberry Pi Pico 2W is the latest addition to the Pico 2 family, now featuring wireless capability! It is built on the second-generation microcontroller IC, the RP2350A, designed and produced by the Raspberry Pi engineering team. Enhanced Microcontroller Development Board 2nd generation of Raspberry Pi Pico W board comes with the following enhancements: CPU: Two Dual-Core CPU: Dual ARM Cortex-M33 Cores Dual RISC-V Hazard3 Cores System clock up to 150MHz SRAM: 520KByte 4MByte QSPI Flash Memory Comprehensive Security: ARM TrustZone, 8KB on-chip OTP Storage, Secure boot XIP v2 for better flash memory interface 12 PIO state machines (3 blocks) We probably have lots of microcontrollers in our house already. For example, a washing machine is controlled by a microcontroller; most likely our watch is too; there is also one in a microwave. Of course, all these microcontrollers already have their application programs. This Raspberry Pi Pico 2W is a microcontroller board that can perform physical computing and can be easily reprogrammed over a USB connection. A More Powerful MCU Dev Board (Dual-Core ARM Cortex-M33) Raspberry Pi Pico W comes with dual ARM Cortex-M0+, while the new Pico 2W comes with a Dual-Core ARM Cortex-M33 and a Dual-Core RISC-V Hazard3. Flexible clocking system, with configurable up to a maximum speed of 150MHz! This tiny MCU comes with a whopping 520 Kbyte of SRAM, an external QSPI Flash with a capacity of 4 MByte, and enhanced eXecute In Place (XIP v2). Larger RAM and Flash size enable you to write high-level programming languages like MicroPython and CircuitPython for Raspberry Pi Pico 2W. New Pico 2 Series with Wireless by Raspberry Pi Compact and Ready to be Mounted into the Product Raspberry Pi Pico 2W preserves the good of its presuccesor, it is ready to be embedded in any product out of the box. If you choose the version without pre-soldered headers, it is ready for SMT (Surface Mount Technology). Raspberry Pi Pico 2W is extended out to a 40-pin 21×51 DIP (Dual Inline Package) style, 1mm thick PCB with 0.1″ (100mil) through-hole pins. The pins are further extended to the PCB edge with a castellated circuit board. This enables it to be soldered to another PCB board without the need for extra header pins, making it a smaller and more compact finished product. Awesome! Enhanced version of Raspberry Pi Pico W, officially from Raspberry Pi RP2350A MCU designed from the ground up by engineers of the Raspberry Pi Team CPU: (either) Dual ARM Cortex-M33 Cores Dual RISC-V Hazard3 Cores Wireless Capability, CYW43439: 2.4GHz 802.11n WiFi Bluetooth 5.2 PCB Antenna System clock up to 150MHz SRAM: 520KByte 4MByte QSPI Flash Memory Comprehensive Security: ARM TrustZone Optional boot signing, enforced by on-chip mask ROM, with key fingerprint in OTP Protected OTP storage for optional boot decryption key Global bus filtering based on ARM or RISC-V security/privilege levels Peripherals, GPIOs, and DMA channels individually assignable to security domains Hardware mitigations for fault injection attacks Hardware SHA-256 accelerator XIP v2 for better flash memory interface Ready with USB Micro B receptor for Power and Data Support USB 1.1 Host and Device Connected to the USB port and it will appear as USB Mass Storage by default, no driver is needed Supports CircuitPython, MicroPython, C and C++, Arduino IDE Programming Language Drag and Drop Program loading method, just like moving files in Windows Explorer Comes in 40-pin 21×51 ‘DIP’ style 1mm thick PCB with 0.1″ through-hole pins, breadboard-friendly With the edge castellations PCB, it is ready to be mounted on another PCB without an additional header pin, SMD-friendly Two options: Comes with PRE-SOLDERED header pins (by Cytron Technologies), breadboard-friendly Comes without header, SMD-friendly Peripheral rich: Extended out 26 multifunction 3.3V General Purpose I/O (GPIO) 23 GPIO are digital-only 3 x 12-bit ADC capable of 500Ksps, Analog to Digital Converter 2 x UART (Universal Asynchronous Receiver/Transmitter) 2 x SPI (Serial Peripheral Interface) 2 x I2C (Inter IC) 16 x PWM (Pulse Width Modulation) 3 x Programmable IO (PIO) blocks, 12 PIO pins that can emulate high-speed interfaces such as SD card or VGA Built-in 12-bit ADC temperature sensor 3-pin ARM Serial Wire Debug (SWD) port Onboard Programmable LED, GP25 Simple yet highly flexible power supply architecture Support USB power, external supply (2 – 5VDC), or battery power. Comprehensive SDK, software examples, and documentation Officially from Raspberry Pi Operating Temperature: -20ºC to +85ºC Compatible with any computer with a USB port, Windows, macOS, Linux Work seamlessly with Raspberry Pi 5, Raspberry Pi 4 Model B, or Raspberry Pi 400 and Raspberry Pi OS Dimensions: 51mm x 21mm x 1mm GPIO, ADC, UART, SPI, I2C of Raspberry Pi Pico Raspberry Pi Pico 2W without header, SMD-friendly 1 x Raspberry Pi Pico 2W – without pre-solder header Resources Raspberry Pi Pico 2W Product Brief (pdf), will be updated to 2W soon, by Raspberry Pi Pico 2W MicroPython SDK (pdf), A MicroPython Environment for the RP2350 Microcontroller Pico 2W C/C++ SDK (pdf), Libraries and Tools for C/C++ Development on the RP2350 Microcontroller RP2350 Datasheet (pdf), A microcontroller by Raspberry Pi Documentation Raspberry Pi Pico 2W, by Raspberry Pi MicroPython, the official site CircitPython, the official site
