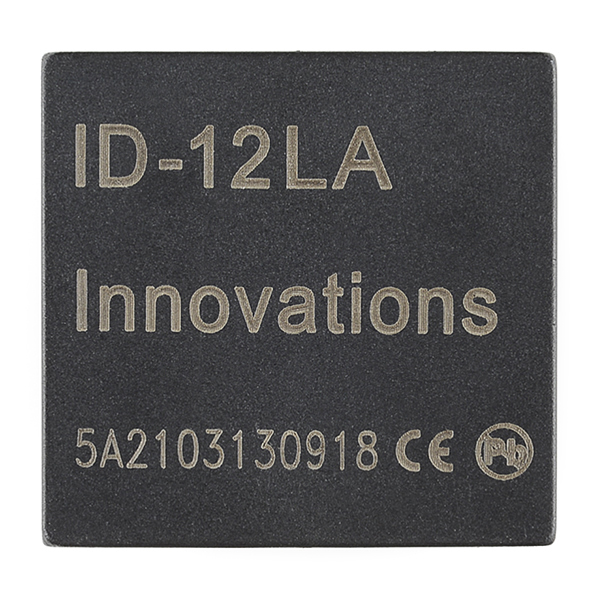

RFID (radio-frequency identification) is the wireless non-contact use of radio-frequency electromagnetic fields, for the purposes of identifying and tracking tags attached to objects. This is the ID-12LA, a very simple to use RFID reader module from ID Innovations. With a built in antenna, the only holdup is the 2mm pin spacing. Power the module, hold up a 125kHz card, and get a serial string output containing the unique ID of the card.
Note: The new ID-12LA is essentially the same as the ID-12, but has a lower voltage input.
2.8 – 5V supply
125kHz read frequency
EM4001 64-bit RFID tag compatible
9600bps TTL and RS232 output
Magnetic stripe emulation output
120mm read range
25x26mm
