This is the classic Hitec HS-422 servo. This solid consumer grade servo is able to take in 6 volts and deliver 57 oz-in. of maximum torque at 0.16 sec/60°, this is a simple servo for any beginner project!
This high quality servo is perfect for your mechatronic needs and if you are looking to get into robotics, this is where to start. The HS-422 servo comes standard with a 3-pin power and control cable and all hardware listed below.

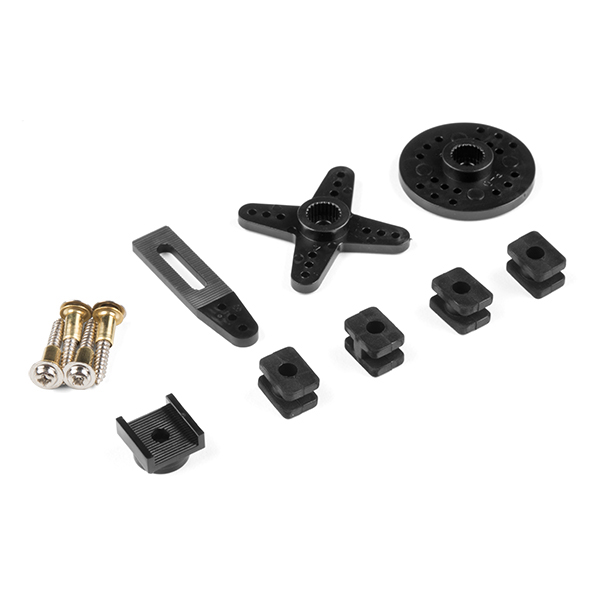

1x HS-422 Servo
1x Circle Horn
1x Double Arm Horn
1x Single Arm (w/ Slide Bracket) Horn
1x Four Point Horn
4x Rubber Grommets
4x 2x15mm Phillips Screw
4x Brass Eyelets
Voltage: 4.8-6.0 Volts
Torque: 45.82/56.93 oz-in. (4.8/6.0V)
Speed: 0.21/0.16 sec/60° (4.8/6.0V)
Direction: Clockwise/ Pulse Traveling 1500-1900usec
Rotation: 180°
Dual Oilite Bushing
Nylon Gears
3-Pole Ferrite Motor
C1 Standard Spline* 40.6 x 19.8 x 36.6mm
Wire Length: 300mm
Weight: 45.5g
