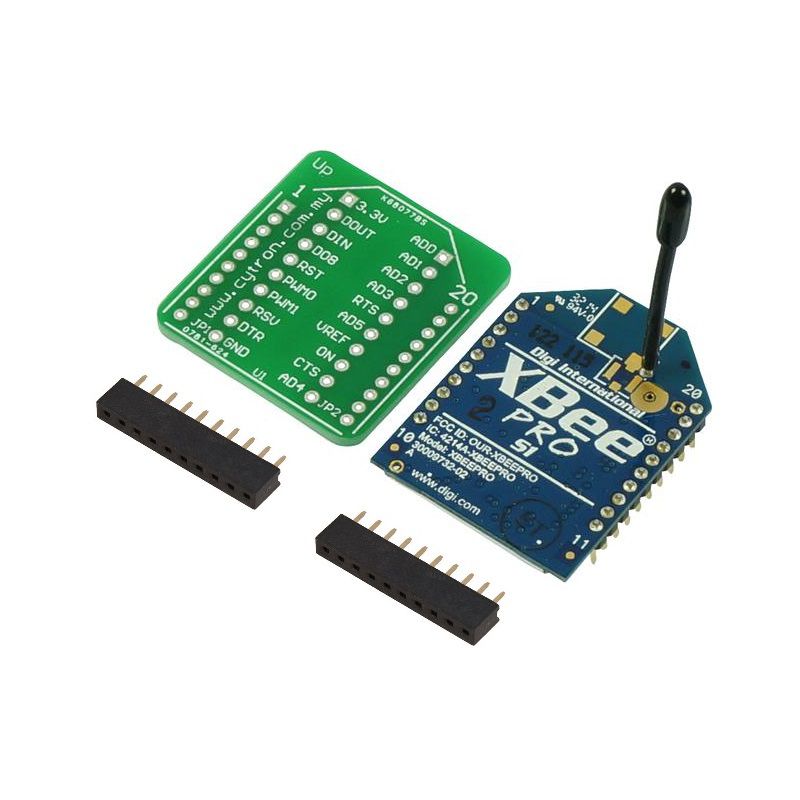

The XBee Pro has similar specification with XBee module, except the transmit power is higher which result in greater wireless communication range, up to 750meters (LOS). The communication protocol, pin layout and arrangement is fully compatible with XBee, thus it can be fitted in to SKXBee. It allows very simple yet reliable wireless communication between microcontroller, computer, or any system with serial communication. Both Point to point and point to multipoint communication are supported. Since XBee Pro pin is 2mm pitch to pitch and 3.3V system, please consider SKXBEE as starter kit.
Note: Please download the latest X-CTU installer here.
Product Specification:
ISM 2.4 GHz operating frequency
60 mW (+18 dBm) power output (up to 750m)
Industrial temperature rating (-40° C to 85° C)
Indoor/Urban range: up to 300 ft (100 m)
Outdoor/RF line-of-sight range: 750meters
Interface data rate: Up to 115.2 Kbps
Operating frequency: 2.4 GHz
Supply voltage: 2.8 – 3.4 V
Transmit current: 270 mA (@ 3.3 V)
Receive current: 55 mA (@ 3.3 V)
Power-down sleep current
