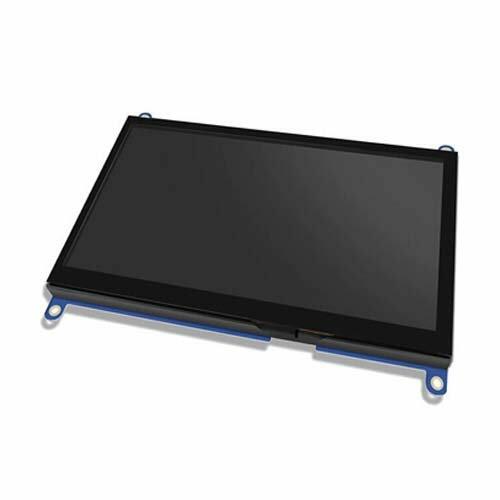

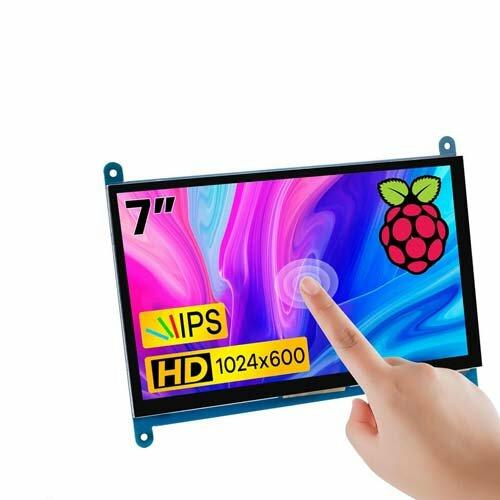

LCD Display 7 Inch - HDMI Out

Description

·        Model: JRP7002-B

·        Compatible with Raspberry Pi 4, Raspberry Pi 3 and Raspberry Pi Zero W

·        Display Type: 7.0" TFT Normally Black

·        Resolution: 1024*RGB*600

·        Color: 16.7M

·        View Angle: Full View

·        Driver IC: ST5091+ST5625

·        Interface Types: HD

·        Connection Mode: HD

·        Power Consumption: 860mA@5.0V

·        Brightness: 500cd/m2

Specification

·        Outline Dimension: 166.51*124.59*18.4mm

·        Active Area Dimension: 154.08*85.92mm

·        Resolution Dimension: 1024*3RGB*600

·        Pixel Pitch Dimension: 0.0219*0.219mm

·        Structure Type: COG+FPC+BL (note)

Note: COG: Chip On Glass (LCD+IC); BL: Backlight; TP: Touch Panel
