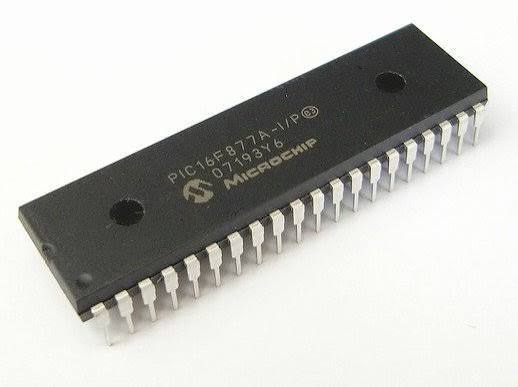

PIC16F877A Microcontroller Overview
The PIC16F877A is a high-performance 8-bit microcontroller from Microchip Technology, designed for a wide range of embedded applications. Featuring a powerful architecture and rich set of peripherals, the PIC16F877A is ideal for both hobbyists and professionals working on projects such as industrial control, automotive systems, robotics, and home automation.
Key Features:
- 8-bit Microcontroller: The PIC16F877A operates with an 8-bit data bus, making it well-suited for controlling simple and complex systems with minimal power consumption.
- 14-bit Instruction Set: This allows for efficient instruction execution, ensuring a good balance between performance and resource usage.
- Memory:
- 368 Bytes RAM: Sufficient for storing variables and temporary data during execution.
- 256 Bytes EEPROM: Non-volatile memory that retains data even when the system is powered off.
- 14KB Flash Program Memory: Large memory space for storing the program code, enabling the creation of complex software applications.
- Operating Voltage: Operates between 2.0V to 5.5V, making it adaptable for various power supply configurations.
- Clock Speed: With a maximum clock speed of 20 MHz, the microcontroller delivers high processing power while maintaining low energy consumption.
- Wide Peripheral Set:

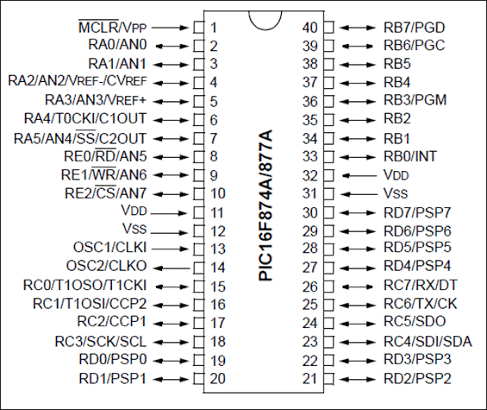

- 33 I/O pins: Can be configured for digital or analog signals, with several pins having alternate functions like PWM, communication interfaces, or analog inputs.
- Timers: Multiple timers for time-dependent tasks and PWM signal generation.
- USART (Universal Synchronous Asynchronous Receiver Transmitter): Enables serial communication for data exchange with other devices.
- SPI (Serial Peripheral Interface): For high-speed data transfer with external peripherals like sensors, displays, and memory chips.
- I2C (Inter-Integrated Circuit): Allows for communication with a variety of low-speed peripheral devices like sensors and EEPROMs.
- Analog-to-Digital Converter (ADC): 10-bit resolution, enabling the microcontroller to interface with analog sensors.
- Interrupt System: Capable of handling interrupts to prioritize certain tasks over others, improving responsiveness.
- Watchdog Timer: Helps prevent system malfunctions by resetting the microcontroller if the software becomes unresponsive.
Applications:
- Embedded Systems: Due to its small size and efficient operation, the PIC16F877A is commonly used in embedded systems where both performance and energy efficiency are critical.
- Industrial Automation: Used in PLCs (Programmable Logic Controllers), sensors, and actuators to control industrial machinery.
- Home Automation: Common in smart home products such as lighting systems, security systems, and HVAC controls.
- Communication Systems: Ideal for embedded applications requiring serial communication protocols like UART, SPI, or I2C.
- Robotics: With its PWM outputs and ADC inputs, it can be used in controlling motors, reading sensors, and processing signals from external devices.
Development Tools:
- MPLAB X IDE: Integrated development environment (IDE) for programming and debugging the PIC16F877A.
- MPLAB XC8 Compiler: The compiler used to convert C code into machine language for the PIC16F877A.
- Pickit 3 or 4: In-circuit debugger and programmer for seamless development and testing.
Why Choose PIC16F877A?
The PIC16F877A offers an excellent balance of features, performance, and ease of use for embedded system design. With its wide range of on-chip peripherals, it simplifies the design process by reducing the need for external components. The robust community and support from Microchip also ensure that you’ll have access to resources for both beginner and advanced projects.
For more detailed specifications, refer to the PIC16F877A Datasheet.
