The UM3561 is a low-power sound generator IC designed to produce sound effects such as sirens and alarms. It is commonly used in toys, alarm systems, and other audio signaling applications. This IC features an internal oscillator and can generate multiple types of sound tones depending on the selected mode.
Key Features:
- Type: Sound Generator IC

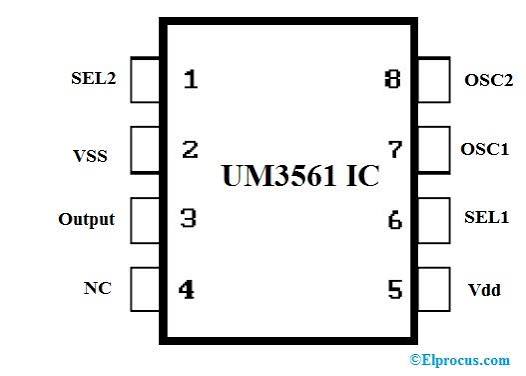

- Package: 8-pin DIP
- Operating Voltage: 3V to 5V
- Low Power Consumption
- Sound Modes: Generates four distinct sound effects:
- Police Siren
- Fire Engine Siren
- Ambulance Siren
- Machine Gun Sound
- Internal Oscillator: Frequency control via external resistor
- Output Drive: Can directly drive a small speaker or connected to an amplifier for louder output
- Simple Interface: Mode selection through external pin configuration
- Operating Temperature Range: -10°C to 60°C
Applications:
- Toys: Commonly used to generate sound effects in electronic toys and games
- Alarm Systems: Integrated in security systems and alert mechanisms for audible warnings
- Sound Effects: Suitable for creating sirens and other audio signals in electronic circuits
- DIY Projects: Ideal for hobbyists building custom sound effect circuits
- Audio Signaling Devices: Used in devices that require attention-grabbing sound alerts
The UM3561 is a cost-effective and easy-to-use solution for generating sound effects in various electronics. Its simple mode selection, low power consumption, and ability to generate multiple sound patterns make it ideal for use in toys, alarm systems, and audio signaling devices.
