The LM741 is a general-purpose single operational amplifier (op-amp) that provides excellent performance in a wide range of analog signal processing applications. Known for its versatility and reliability, the LM741 is widely used in amplifiers, filters, and analog circuits due to its high input impedance and stable operation.
Key Features:
- Type: Single operational amplifier (op-amp)

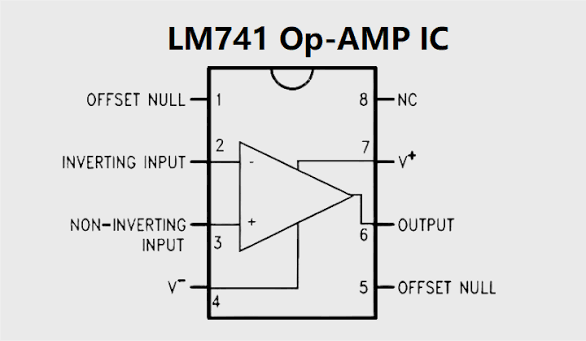

- Package Options: 8-pin DIP, TO-99 metal can, SOIC, and others
- Operating Voltage: ±10V to ±22V (dual supply)
- Input Offset Voltage: 1mV to 5mV (typical)
- Gain Bandwidth Product: 1 MHz
- Slew Rate: 0.5V/µs
- Input Impedance: 2MΩ (typical)
- Output Voltage Swing: ±14V at ±15V supply
- Low Bias Current: Typically 80nA
- Open-Loop Gain: 200,000
- Operating Temperature Range: 0°C to 70°C
Applications:
- Signal Amplification: Used in audio amplifiers, instrumentation amplifiers, and general-purpose signal gain
- Active Filters: Ideal for building low-pass, high-pass, band-pass, and band-stop filters
- Voltage Comparators: Useful for basic comparator circuits, level detection, and signal threshold detection
- Integrators and Differentiators: Essential for analog signal processing tasks
- Oscillators and Waveform Generators: Used in sine wave, triangle wave, and square wave generation circuits
- Precision Rectifiers: Provides accurate signal rectification for AC signals
The LM741 is known for its stability, high gain, and wide voltage range, making it suitable for a variety of analog applications. Its ease of use and long-established reputation make it a popular choice among engineers and hobbyists alike. Whether in amplification, filtering, or signal conditioning, the LM741 is a dependable solution for analog circuit design.
