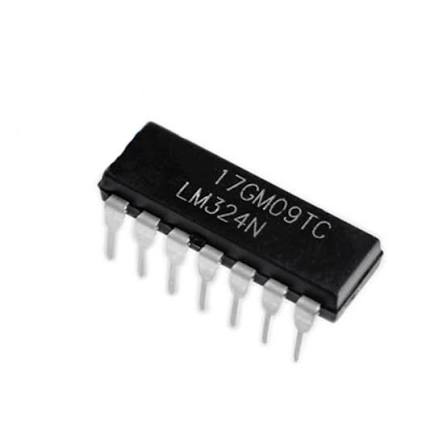

The LM324 is a quad op-amp (operational amplifier) integrated circuit that features four independent, high-gain amplifiers in a single package. It is widely used in analog signal processing and control systems due to its versatility, low power consumption, and ability to operate on a single power supply.
Key Features:
- Type: Quad operational amplifier (op-amp)

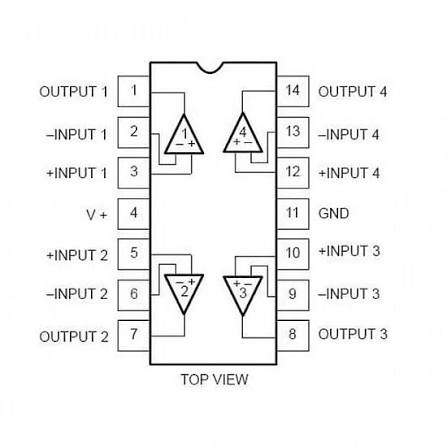

- Package Options: 14-pin DIP, SOIC, and others
- Operating Voltage: Single supply: 3V to 32V, Dual supply: ±1.5V to ±16V
- Input Offset Voltage: 2mV (typical)
- Gain Bandwidth Product: 1 MHz
- Output Voltage Swing: Close to ground, ideal for single-supply operation
- Low Supply Current: 700 µA (per amplifier)
- Open-Loop Gain: 100 dB
- Common-Mode Rejection Ratio (CMRR): 65 dB
- Operating Temperature Range: 0°C to 70°C
Applications:
- Signal Conditioning: Used in sensor signal processing, amplification, and filtering
- Active Filters: Design of low-pass, high-pass, band-pass, and band-stop filters
- Voltage Followers (Buffer): Ideal for buffering signals with low impedance output
- Comparators: Used in basic comparator circuits, level detection, and threshold detection
- Oscillators: Widely used in waveform generators and oscillators
- Integrators and Differentiators: Analog signal processing tasks
The LM324 is valued for its low power consumption, wide operating voltage range, and ability to function on a single supply, making it a versatile choice for a variety of analog designs. Its four op-amps in one package provide a compact and cost-effective solution for many signal processing applications in both consumer electronics and industrial systems. Whether for amplification, filtering, or signal comparison, the LM324 is a reliable component for various analog circuits.
