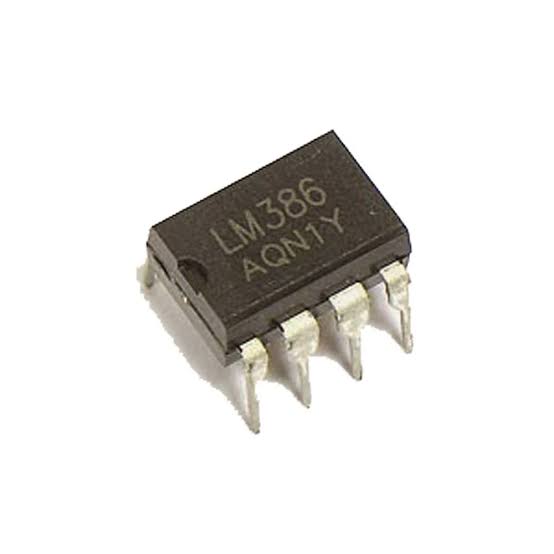

The LM386 (8-Pin) is a low-voltage audio power amplifier designed for applications where high-quality audio amplification is required at low power consumption. Its compact size and ease of use make it ideal for a wide range of portable audio devices, radios, intercoms, and other audio systems.

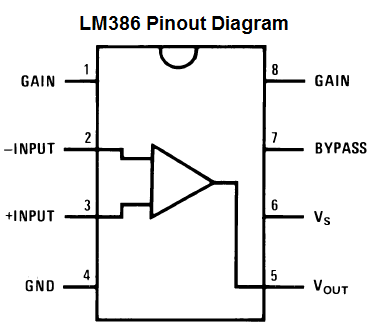

Key Features:
- Type: Low-voltage audio power amplifier
- Package: 8-pin DIP
- Operating Voltage Range: 4V to 12V (up to 18V maximum)
- Output Power: 700mW at 9V with an 8-ohm load
- Gain: Adjustable from 20 to 200
- Input Impedance: High input impedance for easy interfacing
- Low Quiescent Current: 4mA (typical)
- Output Load: Supports 4Ω to 32Ω speakers
- Internal Feedback Resistors: For simplified gain adjustment
- Low Distortion: Ensures clean audio output
- Operating Temperature Range: 0°C to 70°C
Applications:
- Portable Audio Systems: Ideal for amplifying sound in battery-powered devices
- Radios: Used in AM/FM radios to drive speakers or headphones
- Intercom Systems: Enhances voice communication in intercoms
- DIY Audio Projects: Perfect for hobbyists building small audio amplifiers
- Tone Generators: Can be used in sound-generating circuits for alarms and signaling devices
The LM386 (8-Pin) is known for its low power consumption, high efficiency, and ease of integration into various audio applications. Its adjustable gain and internal feedback resistors make it a versatile choice for both low-power amplification needs and more advanced audio designs. Whether for professional or DIY audio projects, the LM386 provides reliable and high-quality sound amplification.
