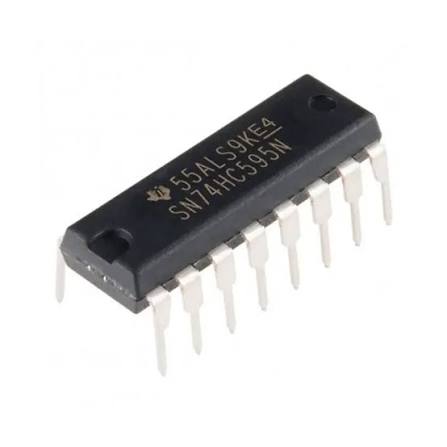

The 74LS595 is an 8-bit serial-in, parallel-out shift register with an output latch and tri-state outputs. It is commonly used in digital circuits to extend the number of output pins and simplify serial-to-parallel data transfer, offering high-speed performance and low power consumption due to its LS (Low-power Schottky) technology.
Key Features:
- Type: 8-bit serial-in, parallel-out shift register with output latches
- Logic Family: 74LS (Low-power Schottky)
- Number of Bits: 8 bits
- Supply Voltage (V_CC): 4.75V to 5.25V
- Max Clock Frequency: ~25 MHz
- Serial Data Input (DS): Allows data to be clocked in serially
- Latch Enable (LE): Controls the transfer of data to the output latches
- Output Enable (OE): Enables or disables the tri-state outputs
- Propagation Delay: ~20 ns (typical)

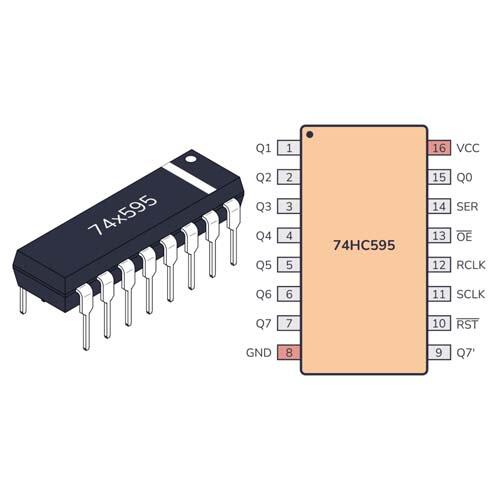

- Package: DIP-16, SOIC-16, TSSOP-16
- Operating Temperature: 0°C to 70°C
Applications:
- LED Display Drivers: Used to drive multiple LEDs with minimal pin usage
- Data Bus Expansion: Extends the number of outputs in microcontroller or microprocessor systems
- Serial-to-Parallel Conversion: Ideal for shifting serial data into parallel format for further processing
- Shift Register Applications: Commonly used in digital systems for data storage and transfer
- Control Systems: Employed in control logic and signal processing systems for enabling/disabling outputs
The 74LS595 is popular for its ease of use, high-speed operation, and ability to reduce the number of I/O pins required in microcontroller or microprocessor designs. Its capability to latch data and provide tri-state outputs makes it an essential component for expanding outputs in various digital systems, from LED displays to communication interfaces. Available in standard DIP and surface-mount packages, it is widely used by both hobbyists and professionals.
