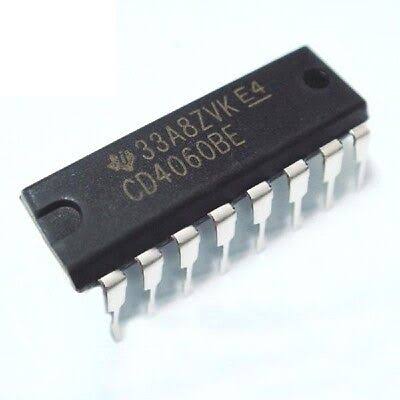

The CD4060 is a 14-stage ripple-carry binary counter/divider and oscillator integrated circuit (IC). It is designed for timing and frequency division applications, with an internal oscillator that can be configured using external components. The CD4060 is versatile and widely used in circuits that require precision timing or frequency generation.
Key Features:
- Type: 14-stage binary counter/divider with oscillator
- Supply Voltage (V_CC): 3V to 15V
- Internal Oscillator: Configurable with external resistors and capacitors
- Frequency Range: Wide operating frequency range, depending on external components
- Outputs: 10 counter outputs (Q4 to Q14) for different frequency divisions
- Reset Pin: Resets the counter to zero
- Low Power Consumption: CMOS technology ensures efficient power usage
- Package: DIP-16, SOIC-16
- Operating Temperature: -40°C to 85°C
Applications:
- Frequency Dividers: Used in frequency division circuits to divide an input frequency into lower frequencies
- Timing Circuits: Ideal for generating precise time delays or periodic pulses
- Oscillator Circuits: Configurable as a standalone oscillator with external components
- Clock Generators: Can be used to generate clock signals for digital systems
- Counters: Employed in counting applications for digital logic and timing
The CD4060 is known for its flexibility, low power consumption, and easy configurability. With its built-in oscillator and counter functionality, it is widely used in timing and frequency control applications such as timers, clocks, and pulse generators. Its availability in DIP and SOIC packages ensures ease of integration into both hobbyist and professional circuit designs.
