IC CD4017BE

The TC4017 is a CMOS decade counter/divider integrated circuit (IC) that provides counting and sequencing functions in digital circuits. It features a 10-output design, where each output goes high sequentially with each clock pulse. The TC4017 is often used in timing and control applications, offering high noise immunity and low power consumption due to its CMOS technology.

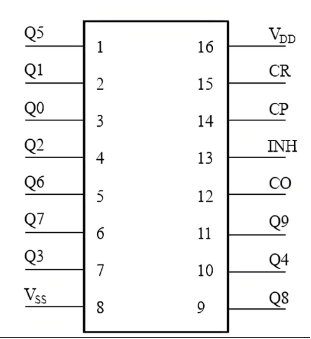

Key Features:

• Type: CMOS decade counter/divider with 10 outputs
• Supply Voltage (V_CC): 3V to 15V
• Max Clock Frequency: 5 MHz (at 10V)
• Outputs: 10 decoded outputs (Q0 to Q9)
• Reset Pin: Resets the counter to zero
• Carry-Out Pin: Can be cascaded for additional counting stages
• Low Power Consumption: CMOS technology ensures low power operation
• Package: DIP-16, SOIC-16
• Operating Temperature: -40°C to 85°C

Applications:

• LED Sequencing: Commonly used in LED chasers and sequence controllers
• Timing Circuits: Ideal for generating timed pulse sequences or clock dividers
• Counters: Used in event counters and decade counting applications
• Frequency Division: Can be used for frequency division tasks in digital circuits
• Automated Systems: Employed in control systems for automation and sequencing

The TC4017 is widely appreciated for its reliability, low power usage, and versatile counting functionality. Its ability to sequence outputs makes it perfect for use in timing, control, and visual displays, making it a popular choice among hobbyists and professionals alike. The IC is available in DIP and SOIC packages for easy integration into various digital designs.
