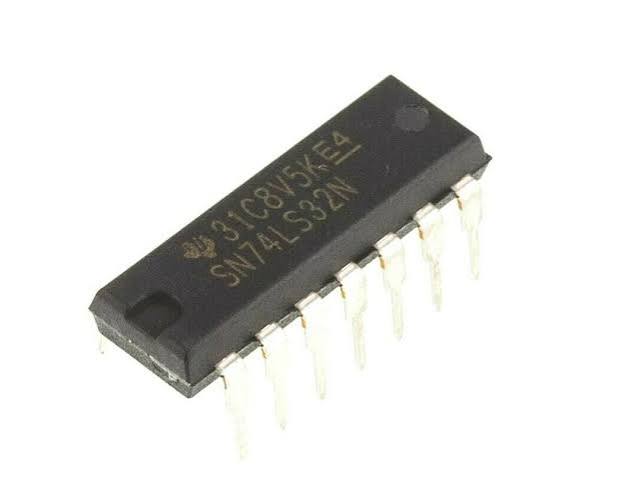

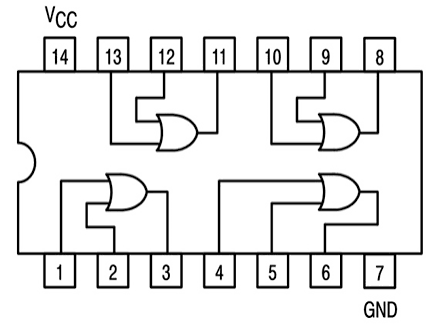

The 74LS32 is a quad 2-input OR gate integrated circuit (IC) from the 74LS series of logic chips. It contains four independent OR gates, each of which performs a logical OR operation. The 74LS32 is commonly used in digital logic circuits, offering high-speed operation and low power consumption.
Key Features:
- Type: Quad 2-input OR gate
- Logic Family: 74LS (Low-power Schottky)
- Number of Gates: 4 independent OR gates
- Supply Voltage (V_CC): 4.75V to 5.25V
- Max Low-Level Output Current (I_OL): 8mA
- Max High-Level Output Current (I_OH): -0.4mA
- Propagation Delay: ~9 ns (typical)
- Package: DIP-14, SOIC-14, TSSOP-14
- Operating Temperature: 0°C to 70°C
Applications:
- Logic Circuits: Used to perform OR logic functions in digital systems
- Combinational Logic: Suitable for creating more complex logic functions in digital designs
- Control Systems: Used in decision-making logic, signal processing, and control logic circuits
- Microprocessor Systems: Commonly used in microcontroller and microprocessor interfacing circuits
- Educational Kits: Popular for prototyping and educational use in digital logic design
The 74LS32 is known for its reliability, low power consumption, and fast switching speeds, making it a versatile and widely used component in digital logic design. Its standard DIP and surface-mount packaging makes it easy to integrate into both hobbyist and professional electronic systems.
