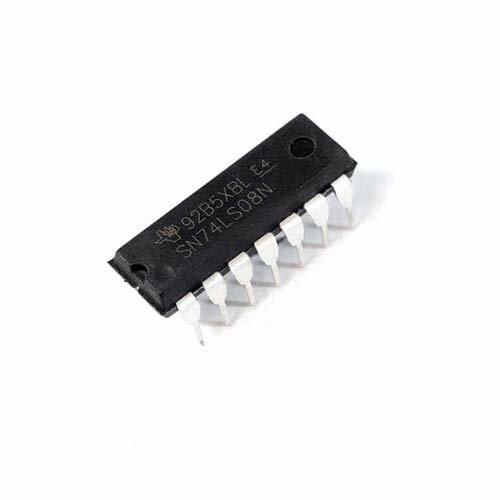

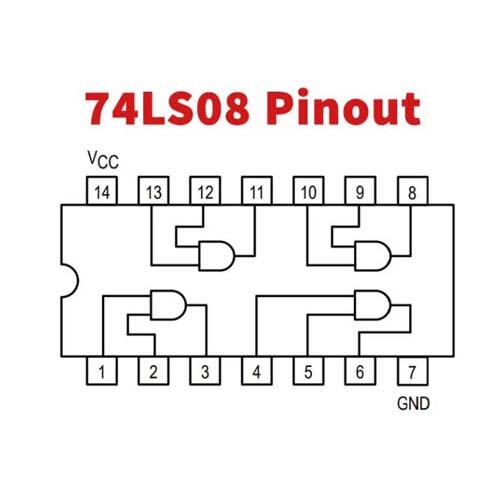

The 74LS08 is a quad 2-input AND gate integrated circuit (IC) from the 74LS series of logic chips. It contains four independent AND gates, each performing a logical AND operation. The 74LS08 is widely used in digital logic circuits for performing basic logic functions, offering high-speed performance and low power consumption.
Key Features:
- Type: Quad 2-input AND gate
- Logic Family: 74LS (Low-power Schottky)
- Number of Gates: 4 independent AND gates
- Supply Voltage (V_CC): 4.75V to 5.25V
- Max Low-Level Output Current (I_OL): 8mA
- Max High-Level Output Current (I_OH): -0.4mA
- Propagation Delay: ~9 ns (typical)
- Package: DIP-14, SOIC-14, TSSOP-14
- Operating Temperature: 0°C to 70°C
Applications:
- Logic Circuits: Used to perform AND logic functions in digital systems
- Combinational Logic: Suitable for creating complex logic functions in digital designs
- Signal Processing: Employed in systems requiring basic logic and control signals
- Arithmetic Logic Units (ALUs): Can be used to build components for arithmetic and logical operations
- Educational Projects: Commonly used in educational kits and prototyping circuits
The 74LS08 is known for its reliability, high speed, and low power usage, making it a go-to component for both hobbyists and professional engineers. Its compact DIP and surface-mount packages allow for easy integration into a wide range of designs, making it essential for many digital logic applications.
