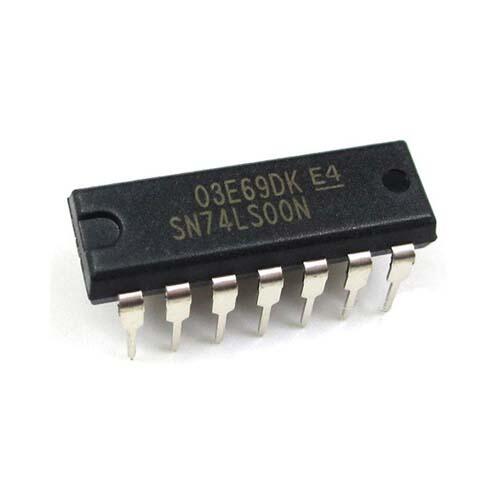

The 74LS00 is a quad 2-input NAND gate integrated circuit (IC) from the 74LS series of logic chips. It contains four independent NAND gates, each of which performs a logical NAND operation. The 74LS00 is widely used in digital circuits for implementing logic operations due to its high-speed performance and low power consumption.
Key Features:
- Type: Quad 2-input NAND gate
- Logic Family: 74LS (Low-power Schottky)
- Number of Gates: 4 independent NAND gates
- Supply Voltage (V_CC): 4.75V to 5.25V
- Max Low-Level Output Current (I_OL): 16mA
- Max High-Level Output Current (I_OH): -0.4mA
- Propagation Delay: ~9 ns (typical)
- Package: DIP-14, SOIC-14, TSSOP-14
- Operating Temperature: 0°C to 70°C
Applications:
- Logic Circuits: Used in creating basic and complex logic functions
- Digital Systems: Common in digital systems for signal processing, arithmetic operations, and control circuits
- Microprocessor Interfaces: Employed in microcontroller and microprocessor-based designs
- Control Systems: Useful in building timers, flip-flops, and counters
- Educational Kits: Often used in academic projects and prototyping
The 74LS00 is valued for its speed, low power consumption, and reliability. Its NAND gate design makes it a fundamental building block in a wide range of digital circuits, making it a staple for both hobbyists and professional engineers. The IC is available in standard DIP and surface-mount packages for ease of integration into designs.
