Description
MAX30102 integrates a red LED, a infrared LED, aphotodetector, an optical equipment and a low noise electronic circuit with environmental light suppression. Adopts standard I2C compatible communication interface can transmit the collected data to microcontrollers for heart rate and blood oxygen calculation. And the standby current can always maintain close to zero by turn off the module by software.
Features

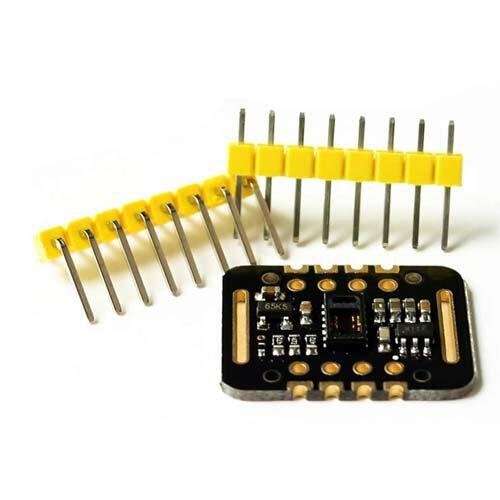

Heart rate sensor module
-Color: As shown.
-Material: Plastic.
-Size: 3x1.5x1 cm/1.18x0.59x0.39 inch.
Specification:
LED peak wavelength: 660nm/880nm.
LED power supply voltage: 3.3~5V.
Detection Type: Optical Reflection (PPG).
Output Interface: I2C Interface.
Communication Interface Voltage: 1.8 ~3.3V~ 5V
Reserve Mounting Hole Size:0.5x8.5mm/0.02x0.33Inches.

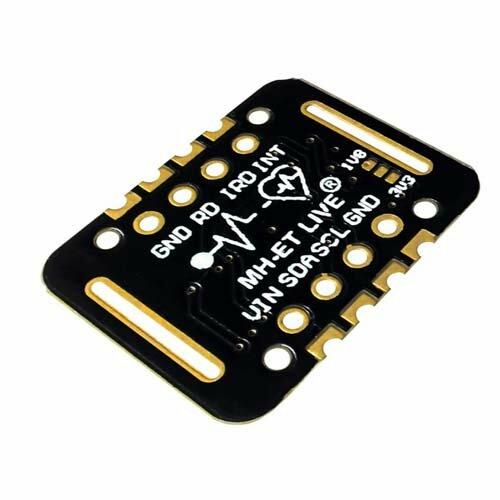

Interface:
VIN: Main power input 1.8V-5V.
3-bit pad: I2C bus pull up level, you can choose 1.8V or 3.3V according to the pin master voltage.
SCL: I2C bus clock
SDA: Connected to the I2C bus data
INT: MAX30102 chip interrupt pin
RD: MAX30102 chip's RD LED grounding terminal, generally doesn't need to connect.
IRD: MAX30102 chip's IR LED grounding terminal, generally doesn't need to connect.
GND: grounding wire.
