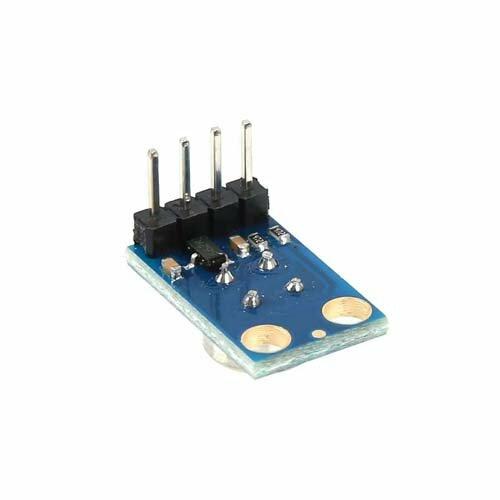

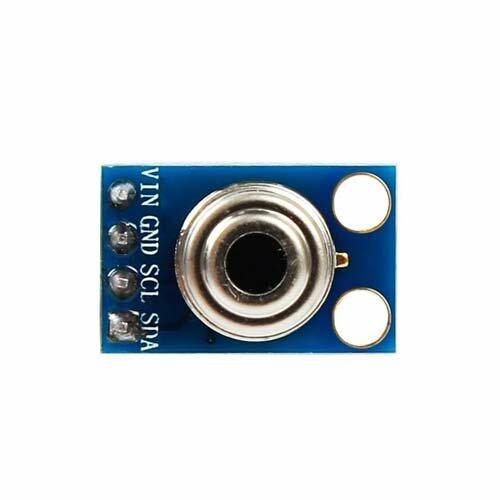

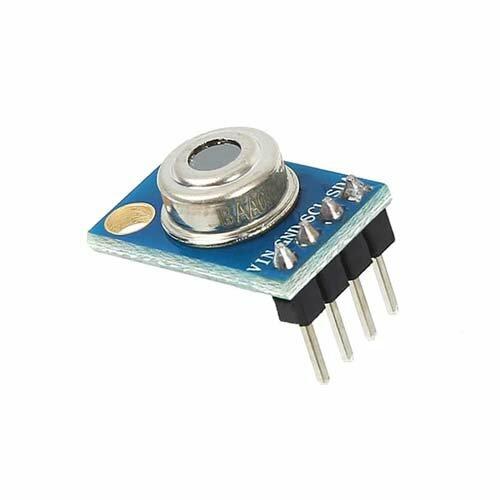

Infrared Temperature Sensor

Operating Voltage

3-5V

Temperature Measurement Range

-70 °C to 380 °C

Accuracy

0.5 °C Accuracy (0-50 °C)

Measurement Resolution

0.02 °C

Interface

I2C Wiring works with Arduino, Raspberry Pi, ESP32, and other Microcontrollers

Soldering

Comes Pre-Soldered, pins are already attached to the module.

Field of View

80°

Supply Current

1.5mA

Output

Conveniently outputs digital values for temperature.

PWM Mode

The module PWM signal by default covers the range of -20C to 120C with an output resolution of 0.14C, but this default range can be adjusted via the I2C bus.
