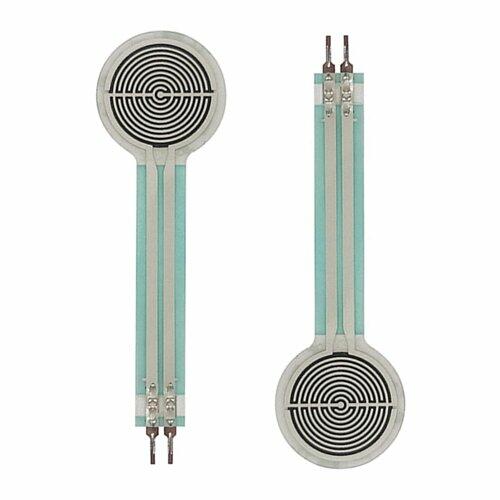

Force Sensor FSR402See More
Features:
1. RP-C18.3-LT pressure sensor with excellent flexibility and stability
2. With a pressure range of 20gm‑6Kg, it can withstand multiple flexible presses and has a long service life
3. The thin film pressure sensor has excellent force sensitivity, and has a quick response speed and strong practicability
4. Composed of polyester film with excellent performance, highly conductive materials, graphene pressure sensitive materials and bonding materials
5. The output interface is made of wear resistant material, which is conducive to the contact of metal shrapnel or thimble, and it can be directly soldered
How to use:
When there is no external pressure, the sensor is in an open circuit state, and the resistance is infinite. When the pressure is less than 20g, the sensor enters the trigger state, and the resistance value is less than 200KΩ. When the pressure further increases, the resistance becomes smaller. When the pressure reaches 6Kg, the resistance value is about 0.1KΩ. The output resistance of the pressure-sensing terminal changes with the change of the external pressure.
Specification:
Item Type: Thin Film Pressure Sensor
Thickness: 0.4 mm
Style: Flake
Trigger Force: 20gm
Pressure Range: 20g--6kg
When Triggering Force: Resistance<200KΩ
Pressure Action Mode: Contact Pressing
Resistance When Not Triggered: Greater than 10MΩ
Activation Time: Less than 0.01s
Operating Temperature: -40℃+85℃
Durability: More than 1 million times (Flexible pressing with 1Kg force)
Resistance Range: 0.1K-200KΩ
Response Time: <10ms
Pressure Action Mode: Static or dynamic (frequency within 10 Hz)
Lag: +10%, (RF+ - RF-)/FR+, 1000g force
Drifting: <5%, 2.5Kg force static load 24H
