Thermistor Sensor ModuleSee More

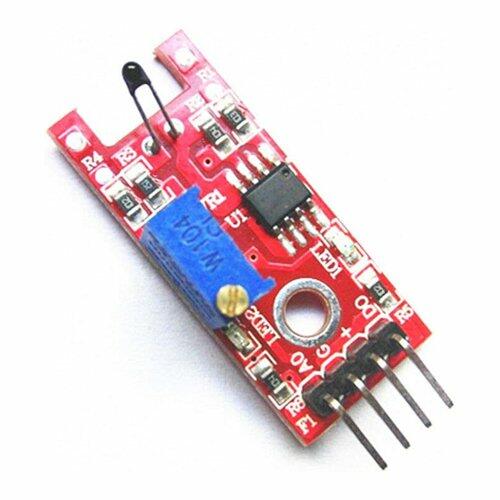

This module consists of an NTC thermistor, an LM393 dual differential comparator, a 3296W trimmer potentiometer, 6 resistors, 2 LEDs, and 4 male header pins. The module features analog and digital outputs.
|
Operating Voltage |
3.3V ~ 5.5V |
|
Temperature Measurement Range |
-55°C to 125°C [-67°F to 257°F] |
|
Measurement Accuracy |
±0.5°C |
1. using the NTC thermistor sensor , good sensitivity
2. the comparator output signal clean waveform is good , driving ability, than 15mA.
3. adjust the temperature distribution bit detection threshold
4. Working voltage 3.3V-5V
5. the output format : Digital switching output (0 and 1)
6. with bolt holes for easy installation
7. a small board PCB size : 3.2cm x 1.4cm
8. using a wide voltage LM393 comparator
