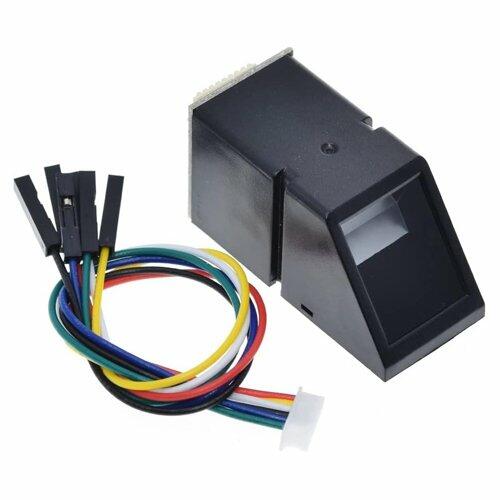

Blue Light Optical Fingerprint Reader Sensor Module for Mega R3 2560 Specifications: Supply voltage: DC 3.3V Supply current: Operating current: <60mA Peak current: <60mA Fingerprint image entry time: <1.0 seconds Window area: 15.3 x 18.2 mm Resolution: 500dpi
Note: 1, fingerprint characteristics The feature extracted by the fingerprint algorithm from the acquired fingerprint image represents the information of the fingerprint. Fingerprint storage, comparison and search are all done by manipulating fingerprint features. 2. Fingerprint processing consists of two processes: fingerprint login process and fingerprint matching process [where fingerprint matching is divided into fingerprint comparison (1:1) and fingerprint search (1:N)].
When the fingerprint is registered, each fingerprint is entered twice, and the recorded images are processed twice, and the composite template is stored in the module.
When the fingerprint is matched, the fingerprint image is entered and the fingerprint image is verified and processed, and then matched with the fingerprint template in the module. If the template is matched with a template specified in the module, it is called a fingerprint comparison method, that is, 1:1. Mode; if matching with multiple templates, called fingerprint search mode, ie 1:N mode), the module gives the matching result (pass or fail).
