The IRF540 is a powerful N-channel MOSFET designed for high-current switching and power management applications. It is widely used in circuits requiring efficient switching of high currents and voltages, such as motor drivers, power supplies, and inverters.
Key Features:
- Type: N-channel MOSFET
- Max Drain-Source Voltage (V_DS): 100V
- Max Continuous Drain Current (I_D): 33A
- Max Power Dissipation (P_D): 150W
- R_DS(on): 0.044Ω (max at V_GS = 10V)
- Gate Threshold Voltage (V_GS): 2.0V to 4.0V

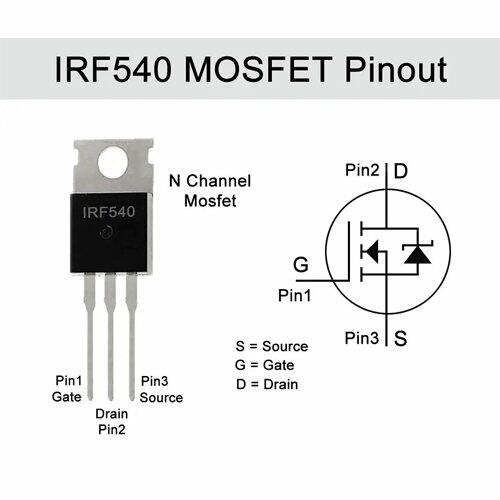

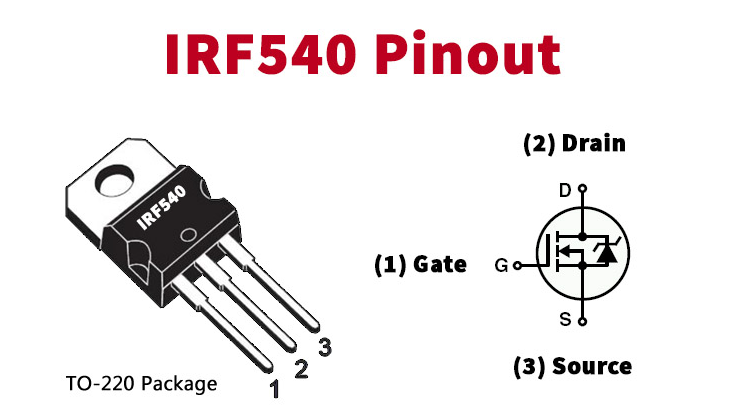

- Package: TO-220
- Operating Temperature: -55°C to 175°C
Applications:
- Power Supplies: Ideal for use in DC-DC converters, power inverters, and power management systems
- Motor Drivers: Used in motor control circuits and high-current switching applications
- Switching Circuits: Efficient for switching high current loads with minimal power loss
- Battery Protection Circuits: Employed in battery management systems for protecting and controlling power flow
- Solar Power Systems: Suitable for use in solar inverters and charge controllers
The IRF540 is well-known for its low R_DS(on), high current-handling capability, and thermal efficiency, making it a go-to solution for a variety of power management and switching applications. Its robust TO-220 package allows for easy heat dissipation, making it ideal for high-power, high-efficiency designs.
