Transistor VN2222

The VN2222 is a versatile N-channel enhancement-mode MOSFET designed for a wide range of switching applications. With its ability to handle high-speed switching and moderate power loads, it is an ideal choice for low to medium power circuits, particularly in switching applications.

Key Features:

• Type: N-channel MOSFET
• Max Drain-Source Voltage (V_DS): 60V
• Max Continuous Drain Current (I_D): 0.6A
• Max Power Dissipation (P_D): 1.5W
• Gate Threshold Voltage (V_GS): 2.0V to 4.0V
• R_DS(on): 5Ω max

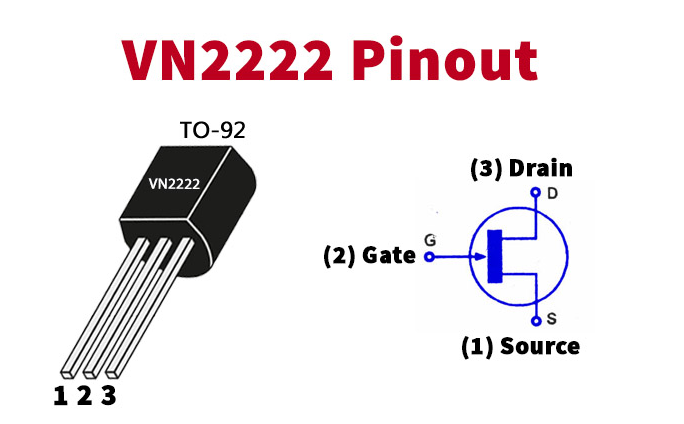

• Package: TO-92
• Operating Temperature: -55°C to 150°C

Applications:

• Switching Circuits: Ideal for switching low to moderate current loads
• Amplifiers: Can be used in analog amplifier designs
• Signal Processing: In low-voltage digital and analog circuits
• Load Drivers: Suitable for driving relays, solenoids, and small motors
• Power Management: Used in DC-DC converters and power supplies

The VN2222 is commonly used due to its high-efficiency switching, low cost, and small footprint, making it popular for both educational projects and commercial designs. Its compact TO-92 package makes it well-suited for breadboard prototyping and space-constrained applications.
