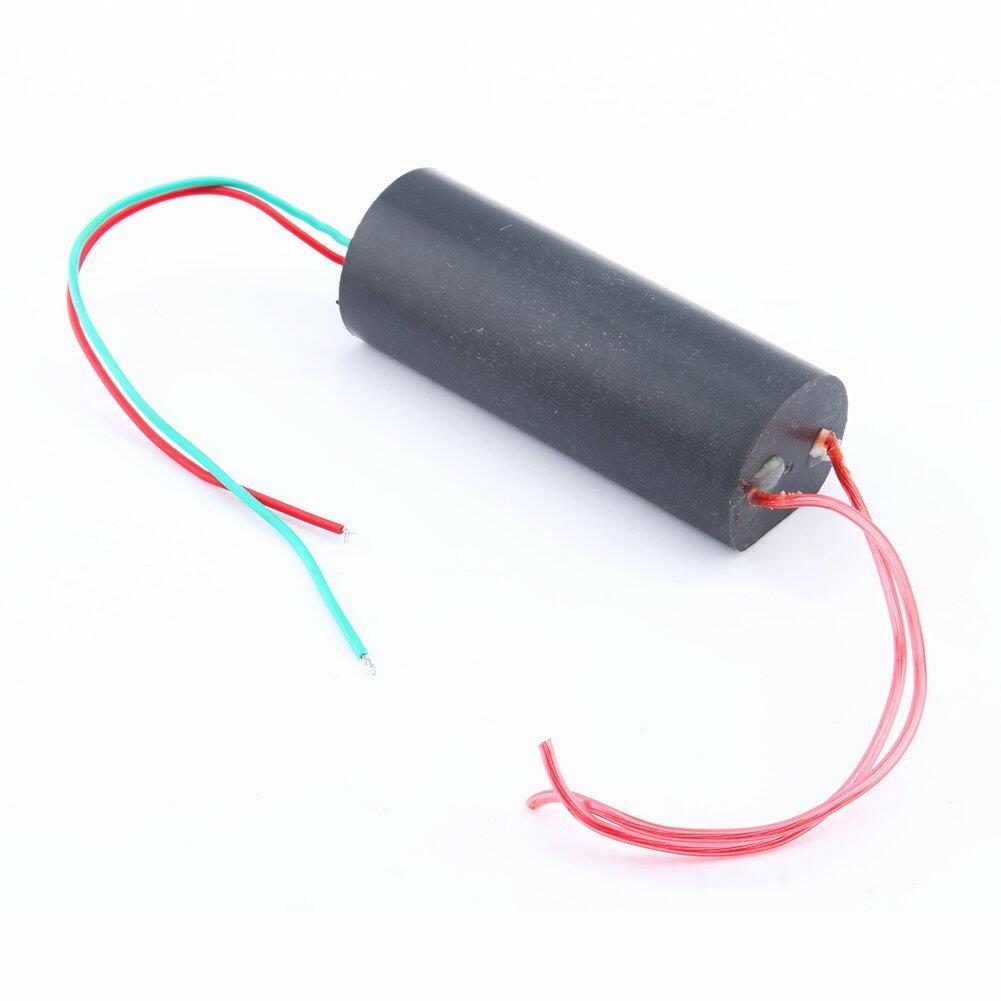

Boost Step Up Module High Voltage Generator DC 3-6V To-400KVSee More
Specifications:
Input Voltage: DC 3 V to 6 V
Input Current: 2 A - 5 A
High Pressure Type: The type of pulse current
Output Voltage: 400000V(please pay attention to safety)
High Pressure Discharge Distance Between: Approx.10 ~ 20mm / 0.4 ~ 0.8in
The Output High Voltage Wire Length: Approx. 100mm / 3.9in
Input Power Cord Length: Approx. 100mm / 3.9in (the red line is positive)
Wiring:
Red and green power connection red line:"+" green line "-"
output: the other side ,same color cable
Please Notice:
The high-voltage module should avoid the use of electricity in high voltage no-load . (Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) . Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. )
Work: intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily damaged module
