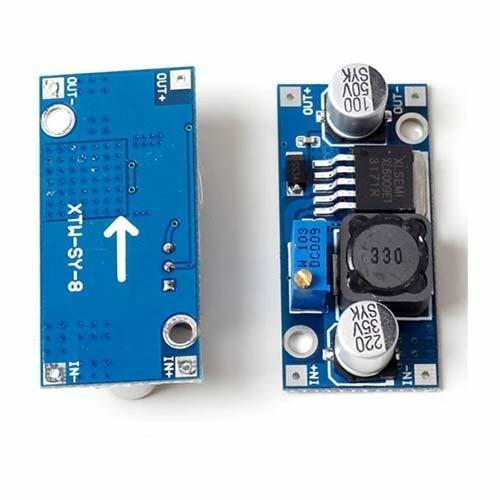

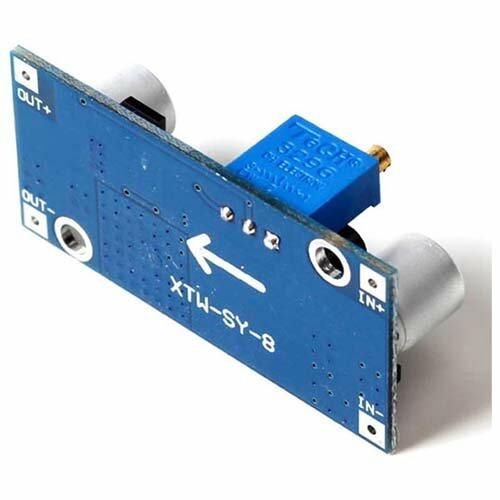

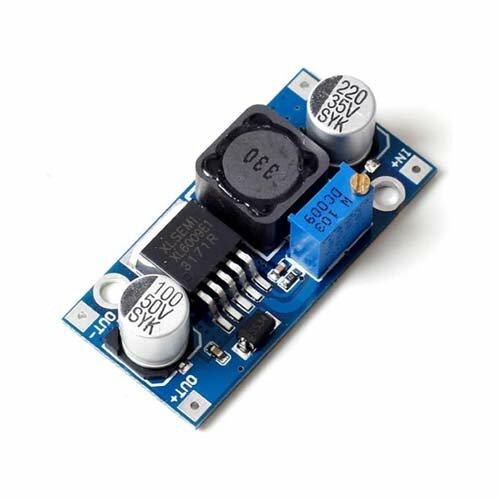

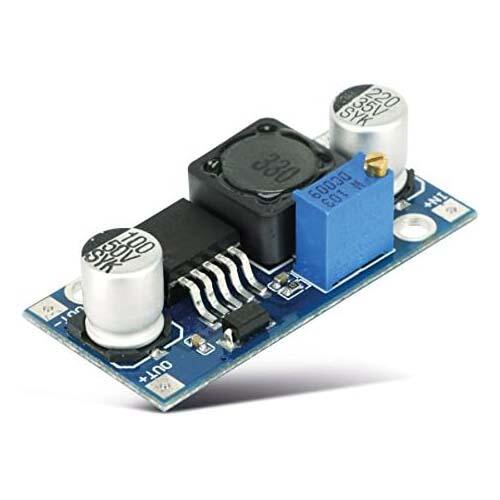

Boost module XL6009See More
|
Input voltage: |
DC 4V-30V |
|
Output voltage: |
DC 5V-35V (adjustable) |
|
Output current: |
4A (max) |
|
Maximum efficiency: |
94% |
|
Voltage regulation: |
± 0.5% |
|
Operating temperature: |
-40 to +85 °C |
|
Frequency: |
400 kHz |
Tests for the sample:
In: 4 V out: 12 V, 0.4 A, 4.8 W
in: 5 V out: 12 V, 0.8 A, 9.6 W
in: 7.4 V out: 12 V, 1.5 A, 18 W
in: 12 V out: 15 V, 2 A, 30 W
in: 12 V out: 16 V, 2 A, 32 W
in: 12 V out: 18V 1.6A 28.8W
in: 12 V out: 19V 1.5A 28.5W
in: 12 V out: 24 V, 1 A, 24 W
