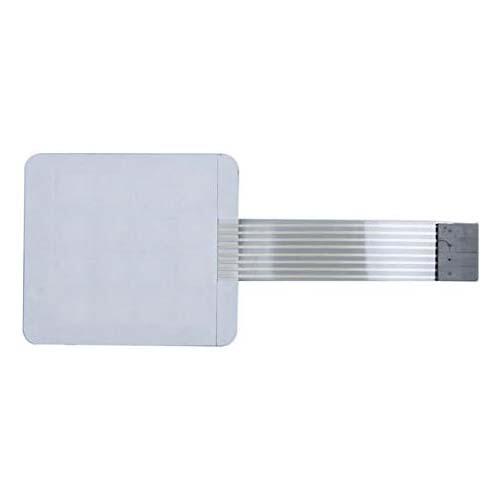

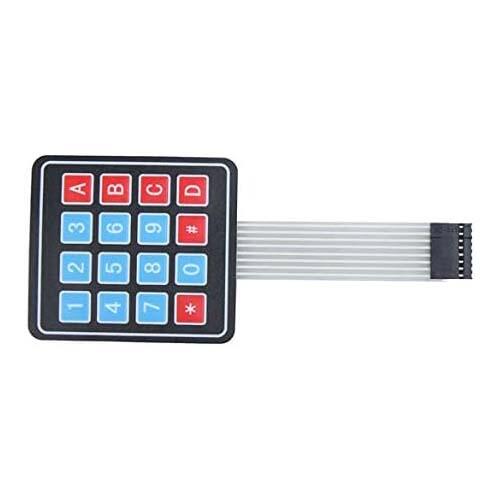

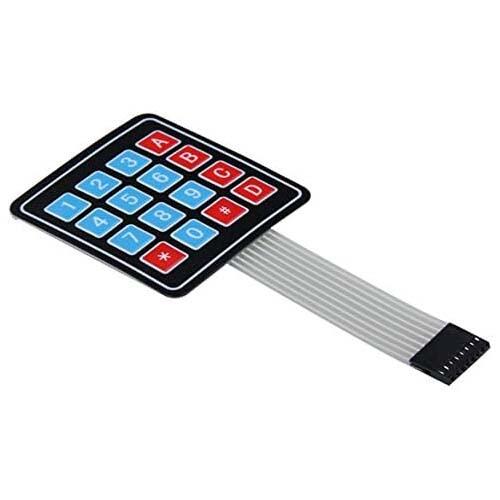

Keypad Membrane 4X4 See More
High quality. Contact resistance: 500 (& # x3 a9); Insulation resistance: 100 m (& # x3 a9); Key actuation force 150-200N Rebound time 1 (MS). Service life: 100 million times. Operating temperature: 60 & # X2103; Electronic features: Circuit rating: 35 V (DC) 100 mA, 1 W. Contact resistance: 10 & # x3 a9 ~ 500 & # x3 a9; (varies depending on the lengths and different from those of the material used). Insulation resistance: 100 m & # x3 a9; 100 V. Dielectric strength: 250 VRms (50 ~ 60 Hz 1 min). Electric shock jitter: Service life: tactile type: closed and opened one million times. Mechanical features: Operating pressure (touch): 170 ~ 397 g (6 ~ 14 ounces). - Travel: touch type: 0.6 ~ 1.5 mm. Environmental parameters: Working temperature: -40 – + 80. Storage temperature: -40 – + 80. Vibration: 20 g, max. (10 ~ 200 Hz, the mil-sld-202 M204. state B). Size: 7.7 x 7 cm (L x W). 5 x 4 x 4 Matrix Array 16 Key Membrane Switch
