Relay 4 Channel With RF Remote

Description:

The 433MHz DC12V Wireless Remote Control Switch with 4 relays, can make the equipment to be controlled reach the positive and negative rotation of the motor, or on/off switching of the switch and requirements for various special control procedures. The product has stable performance, small size and high receiving sensitivity. Mainly used in electric door, window, lifting equipment, etc.





7 Advantaged Working Mode:

·        Momentary Mode (Press On, Release Off)

·        Toggle Mode (Toggle ON, Toggle again OFF)

·        Latch Mode (Toggle ON, Toggle again OFF but only allow 1 channel work, the other will OFF)

·        2-Channel Momentary + 2-Channel Toggle

·        2-Channel Toggle + 2-Channel Latching

·        2-Channel Momentary + 2-Channel Latching

·        2-Channel Latching + 2-Channel Latching



Specification:

Transmitter (remote):

·        4 buttons A, B, C, D

·        Size: 56x31x16mm

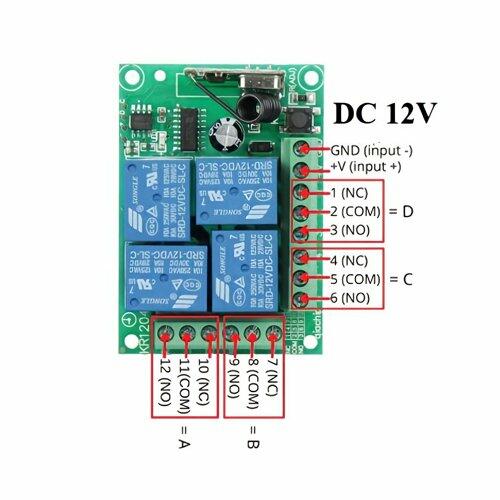

Reciever (KR1204):

·        Input voltage: DC12V

·        Working Frequency: 433MHz
