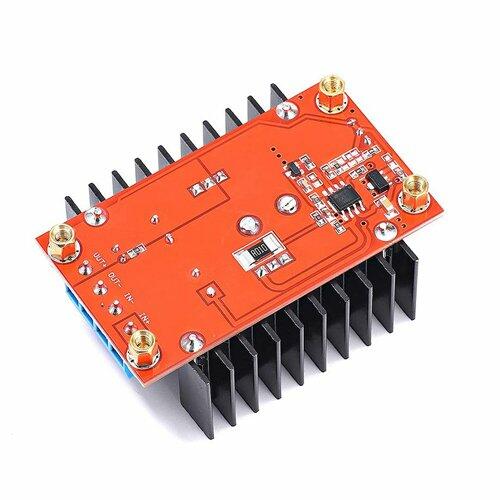

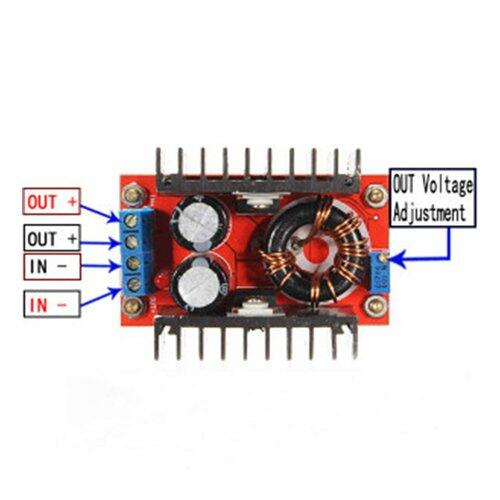

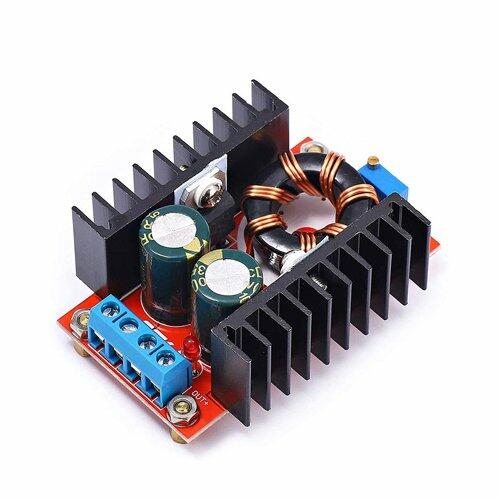

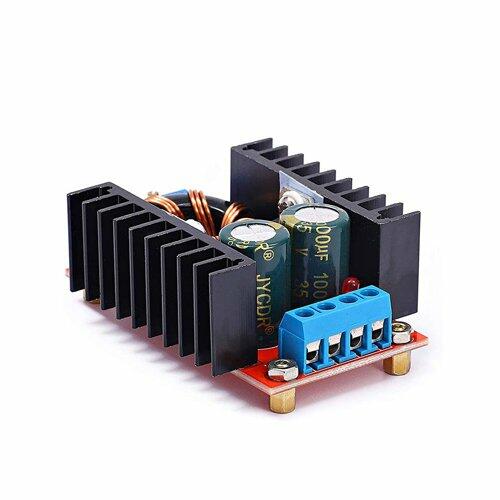

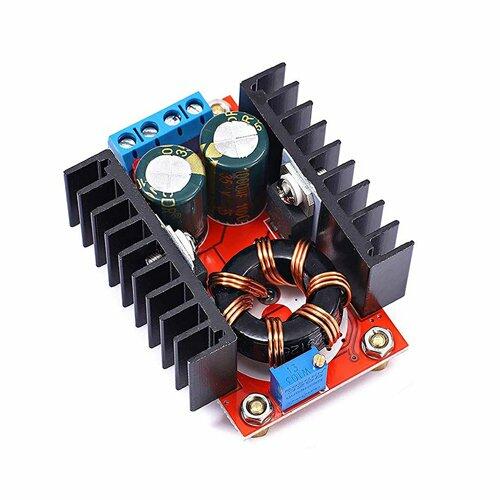

DC-DC Booster Converter 150WSee More
About this item
· Input voltage: DC 10V-32V, Output voltage: DC12V-35V(adjustable)
· Input current: 16A (MAX), Output current: 10A (MAX)
· Conversion efficiency: 94% (For reference: when Input 19V 2.5A Output 16V)
Specification:
Input voltage :10-32V
Output voltage: 12-35V (adjustable)
Output Current: 10A (MAX)
Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
Easy to drive 65W 90W dual-core notebook.
Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45°c
Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Full load temperature rise: 45°c
No-load current: 25mA typical
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
Input Reverse Polarity Protection: None (Please Series diode at the input port.)
