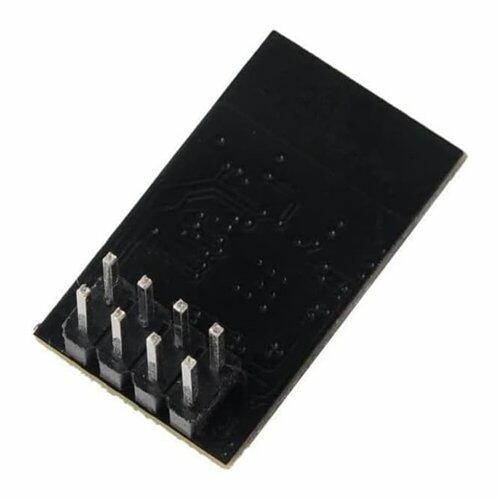

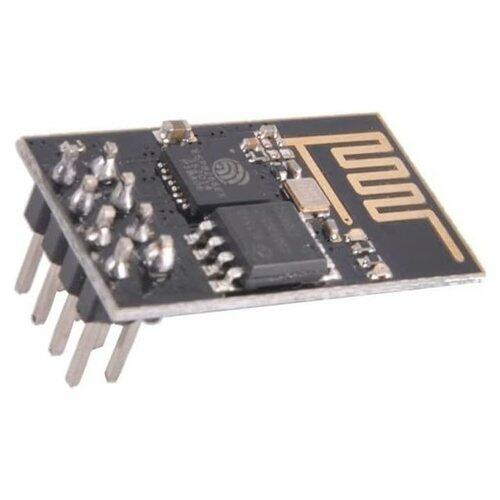

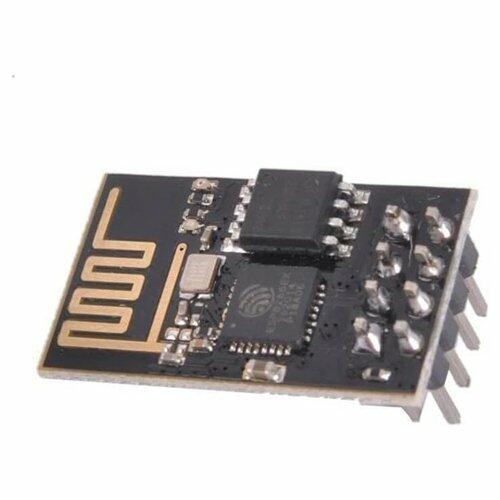

ESP8266 WIFI Wireless Transceiver ModuleSee More
Production Description:
This is WiFi serial transceiver module, based on ESP8266 SoC with an integrated TCP/IP protocol stack It can either host the application or offload all Wi-Fi networking functions from another application processor.
ESP8266 has powerful on-board processing and storage capabilities allowing it to integrate with sensors and other devices through GPIOs with minimal development up-front and minimal loading during runtime.
Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.
Specifications:
802.11 b/g/n
Wi-Fi Direct (P2P), soft-AP
Integrated TCP/IP protocol stack
Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLLs, regulators, DCXO and power management units
+19.5dBm output power in 802.11b mode
Power down leakage current of <10uA
Integrated low power 32-bit CPU could be used as application processor
SDIO 1.1/2.0, SPI, UART
STBC, 1×1 MIMO, 2×1 MIMO
A-MPDU & A-MSDU aggregation & 0.4ms guard interval
Wake up and transmit packets in <2ms
Standby power consumption of <1.0mW (DTIM3)
