About this item
· L298N Motor Driver Module Uses L298N as Main Driver Chip, Strong Driving Ability,Low Heat and Strong Anti-Interference Ability
· Double H Bridge Design:L298N Motor Comes With Dual H Bridge Which Can Drive one 2-Phase Stepper Motor, one 4-Phase Stepper Motor or Two DC Motors at Same Time
· Easy to Use: L298N Board No Assembly Required,Just Wire Up Motors and Power,Very Easy to Install
· Wide Application:L298N Module Works for DIY Smart Car Robot Power

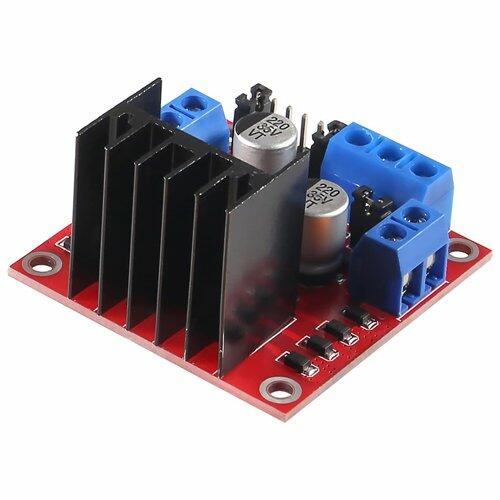

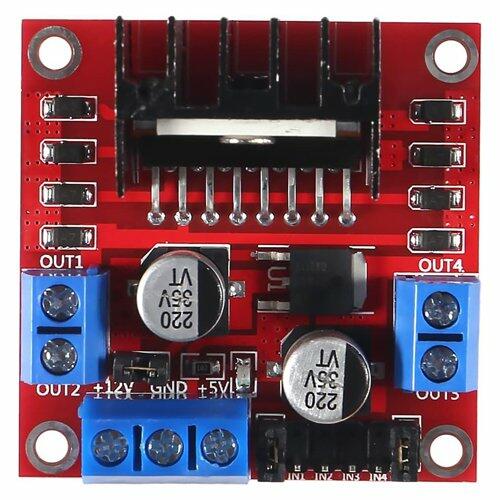

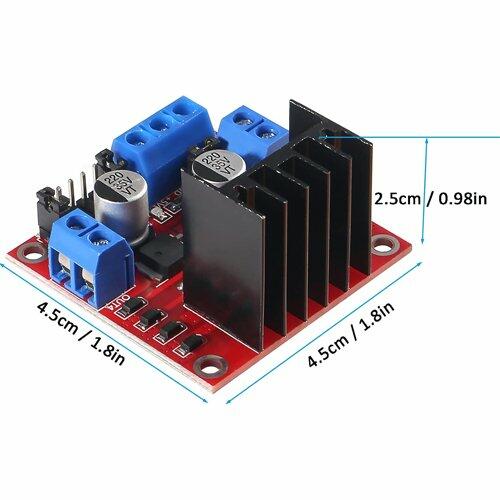

L298N Motor Driver Controller Board
Specification:
- Module : Dual H Bridge Motor Drive Module
- Work Mode : H Bridge Drive (Double Road)
- Control Chip : ST L298N Dual H-Bridge Driver Chip
- Logical Voltage : 5V
- Drive Voltage : 5V-35V
- Logical Current : 0mA-36mA
- Driving Current : 2A (MAX Single Bridge)
- Maximum Power : 25W
Notes:
- Application: When your Driver is 7V-12V, You Can Enable the On-Board 5V Logic Supply. When Using the On-Board 5V Power Supply, the + 5V Power Supply in the Interface IS Not Input Voltage, but it Can Draw 5V Voltage for External Use
- Unconventional Application of High-Voltage Driver: When the Driving Voltage is Higher Than 12V, Less Than or Equal to 24V, for Example, to Drive a Motor With Rated Voltage of 18V, the Jumper Cap with 5V Output Enabled On-Board Voltage Must be Pulled Out and then Outside the 5V Output Port Connect 5V Voltage to L298N Internal Logic Voltage Supply
