DC to DC Stepdown Module LM-2596See More

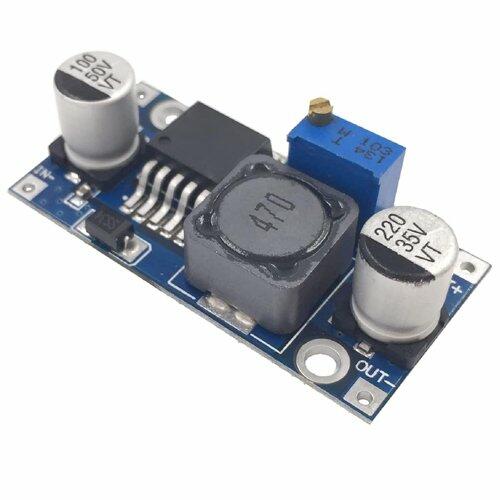

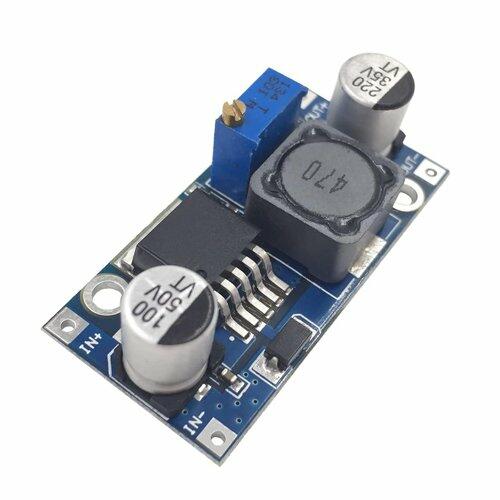

· 【High Precision】The buck converter consists of 36u thickened circuit boards, high-Q inductance with output LED indicator, and superior solid-state capacitors that can effectively filter out high frequency noise. Suitable for various electronic projects.
· 【Input Voltage】DC 3.2V to 35V (input voltage must be 1.5V higher than the output voltage, no boost).
· 【Output Voltage】DC 1.25V to 30V voltage is continuously adjustable, maximum output current is 3A.
· 【Mini Size】45 * 23 * 14 mm (with potentiometer). 8pcs included.
Features:
- DC to DC buck converter module
- Thickened circuit boards
- Advanced solid-state capacitor
- Short circuit and over-temperature protection
- 100% tested, sealed in anti-static packaging
Kindly Note:
1. Input voltage must be 1.5 V higher than the output voltage, no boost

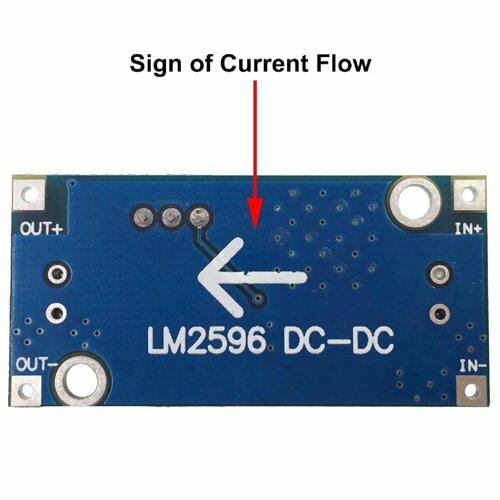

2. Do not reverse the input and output interface
3. Keep output under 2.5A (or 10W) and use a heat sink when for a long time working

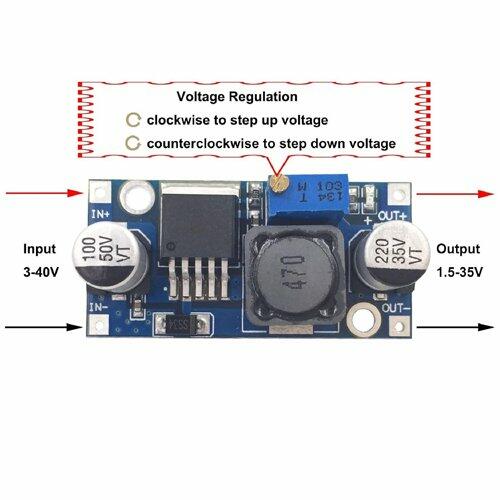

4. The factory settings stay a high voltage, you may need to contrarotate the screw on blue potentiometer about 7-15 circles before the output voltage changes
Specifications:
- Type: DC-DC buck converter
- Input voltage: DC 3.2V - 35V
- Output Voltage: DC 1.25V - 30V (adjustable)
- Output Current: 3A (max.)
- Output Power: 15W (max.)
- Conversion Efficiency: 92% (max.)
- Switching Frequency : 65KHz
- Rectification: non-synchronous rectification
- Module property: non-isolated buck module
- Operating Temperature: -45℃ to +85℃
- Load Regulation: ± 0.5%
- Voltage Regulation: ± 2.5%
