Servo Motor SG90 180°See More
Description:

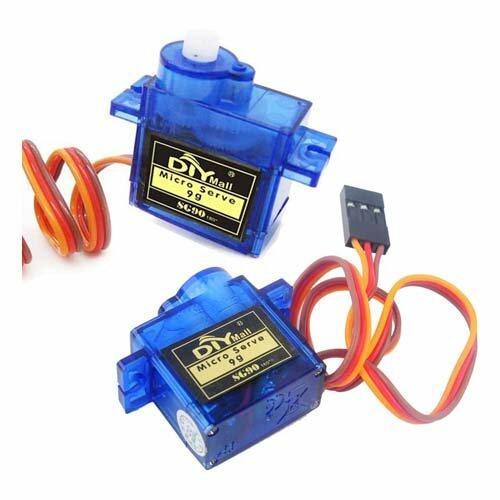

DIYmall SG90 is a high quality,low-cost servo for all your mechatronic needs. It comes with a 3-pin power and control cable, mounting hardware.

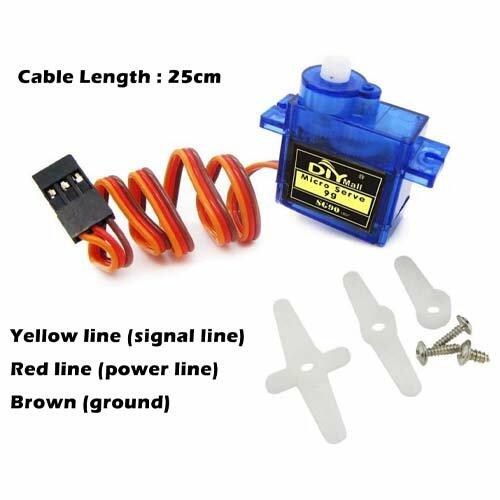

Circuit connection:
Yellow line (signal line)
Red line (power line)
Brown (ground)
Speed: Standard speed is 120 degrees, the maximum speed is 180 degrees

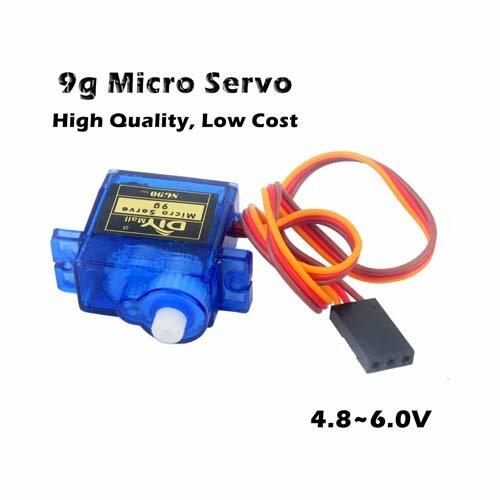

Operating Voltage : 4.8~6.0V
Currenct: 0.19A@5V，0.24A@6V

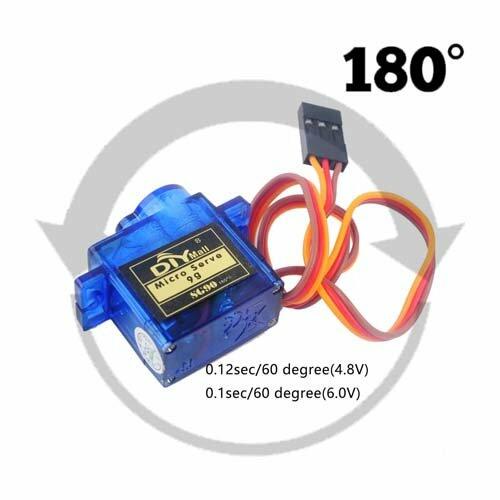

Operating Speed : 0.12sec/60 degree(4.8V)~0.1sec/60 degree(6.0V)
Torque : 1.6kg/cm(4.8V)
Dead Band Width : 5usec
Temperature Range : -30~+60℃
Cable Length : 25cm
Servo Type : Analog Servo
