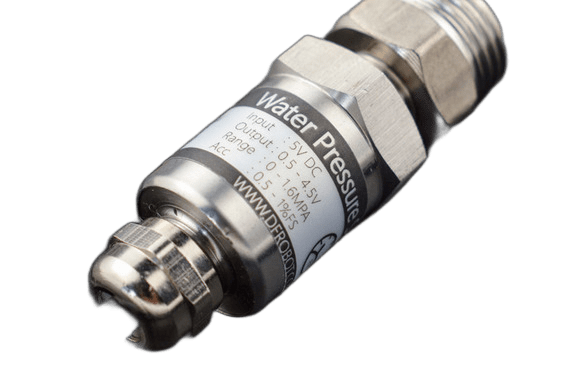

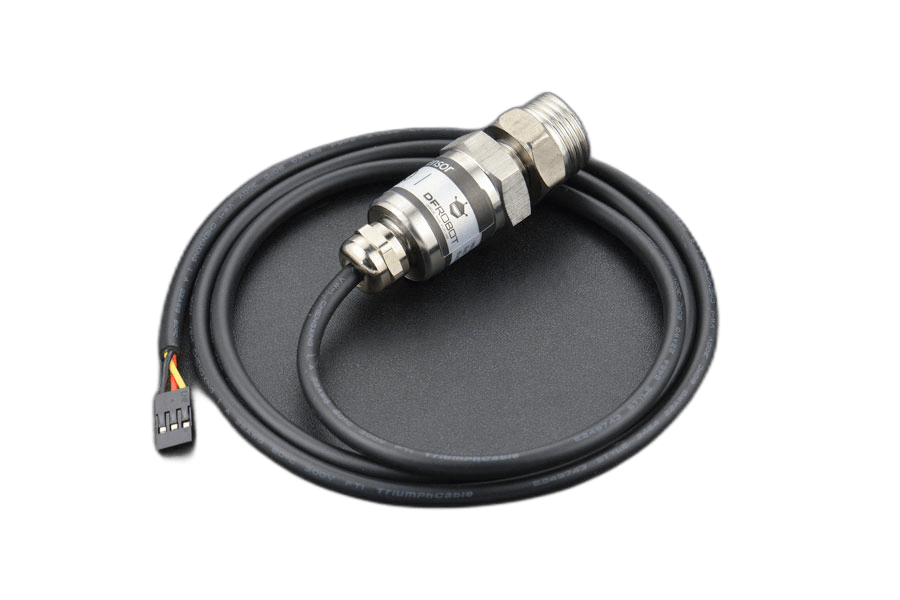

Analog Water Pressure Sensor

SPECIFICATION

• Medium: liquid/gas without corrosion
• Wiring: Gravity-3Pin (Signal-VCC-GND)
• Pressure Measurement Range: 0~1.6 Mpa
• Input Voltage: +5 VDC
• Output Voltage: 0.5~4.5 V
• Measurement Accuracy: 0.5%~1%FS (0.5%, 0~55°C)
• Threadably: G1/4
• Adapter: G1/2 to G1/4
• Waterproof level: IP68
• Operating Temperature: -20~85°C
• Response Time: <2.0 ms
• Quiescent Current: 2.8 mA
• Normal Operating Pressure: ≤2.0 Mpa
• Damaged Pressure: ≥3.0Mpa
• Service Life: 10’000’000 times
• Line length: 1m
