Description

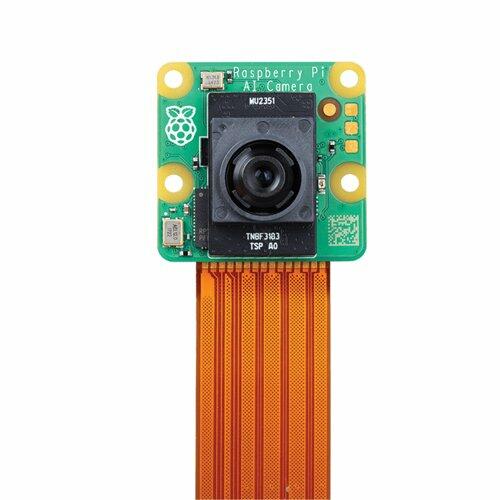

Introducing the groundbreaking Raspberry Pi AI camera module, powered by the advanced Sony IMX500 Intelligent Vision Sensor. This innovative camera module is designed to elevate your AI vision projects to new heights by offering on-board AI inferencing capability, and it comes preloaded with a MobileNet model.
The AI Camera transparently augments captured still images or video with tensor metadata, leaving the processor in the host Raspberry Pi free to perform other operations. Support for tensor metadata in the libcamera and Picamera2 libraries, and the rpicam-apps application suite, make it easy for beginners to use while offering advanced users unparalleled power and flexibility.
The Raspberry Pi AI camera module is a game-changer for AI enthusiasts and developers. Its powerful features and intuitive design make it the ideal choice for a wide range of applications, including:
- Computer Vision: Object detection, image classification, and more.
- Robotics: Autonomous navigation and obstacle avoidance.
- Surveillance: Real-time monitoring and analysis.
- IoT: Smart home applications and industrial automation.
With the Raspberry Pi AI camera module, you can easily bring your AI projects to life. Its powerful features and intuitive design make it the perfect tool for developers of all levels.
Features:
- 1st Raspberry Pi AI Camera Module
- Powered by Sony IMX500 Intelligent Vision Sensor
- 12MP Resolution, 12-megapixel image sensor same as HQ camera and Camera module V3
- On-Board AI Processing
- Pre-loaded with Pre-trained Machine Vision Model – MobileNet model
- Wide Field of View: Capture more of your surroundings with a 76-degree field of view
- Manual Adjustable Focus Lens

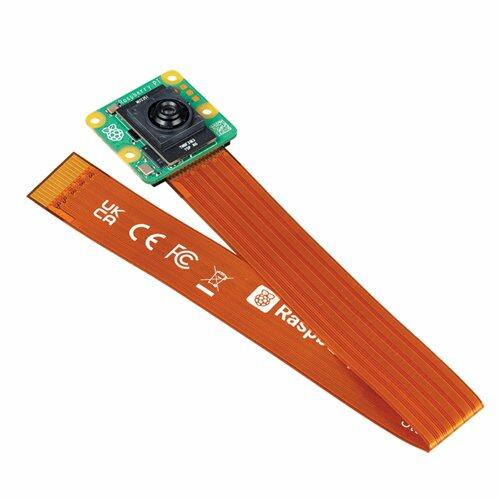

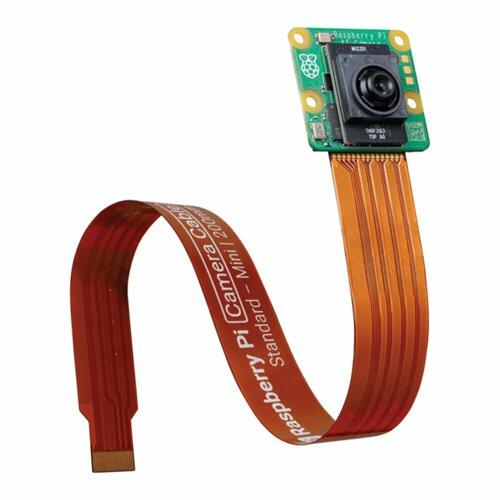

- Easy Connectivity, comes with two 200mm cables (15-way and 22-way) offering seamless integration with all Raspberry Pi computers.
Specifications:
- Sensor: SONY IMX500
- Resolution: 12.3 megapixels
- Sensor size: 7.857 mm (type 1/2.3)
- Pixel size: 1.55µm x 1.55µm
- Horizontal/vertical: 4056×3040 pixels
- IR cut filter: Integrated
- Autofocus system: Manual adjustable focus
- Focus range: 20cm – ∞ (Infinity)
- Focal length: 4.74 mm
- Horizontal field of view: 66 ±3 degrees
- Vertical field of view: 52.3 ±3 degrees
- Focal ratio (F-stop): F1.79
- Infrared sensitive: No
- Output: Image (Bayer RAW10), ISP output (YUV/RGB), ROI, metadata
- Input tensor maximum size: 640(H) × 640(V)
- Input data type: ‘int8’ or ‘uint8’
- Memory size: 8388480 bytes for firmware, network weight file, and working memory
- Framerate:
- 2×2 binned: 2028×1520 10-bit 30fps
- Full resolution: 4056×3040 10-bit 10fps
- Ribbon cable length: 200 mm
- Cable connector: 15 × 1 mm FPC or 22 × 0.5 mm FPC
- Operating temperature: 0°C to 50°C
