MCU-86 AK8975 3- Axis Electronic Compass

Description

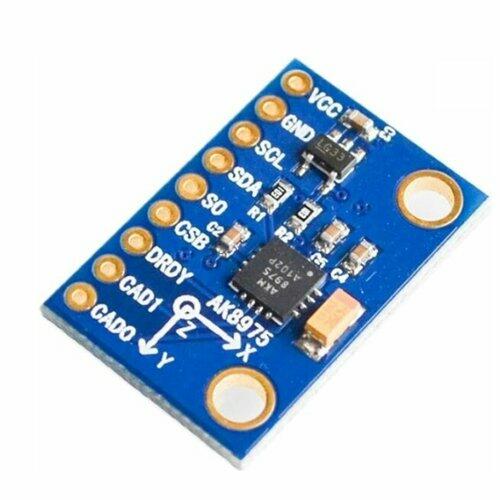

The MCU-86 AK8975 is a 3-axis electronic compass module based on the AK8975 sensor, designed for accurate orientation and heading determination in various electronic applications. This module integrates a magnetometer sensor capable of measuring magnetic fields along three orthogonal axes, providing precise heading information relative to the Earth’s magnetic field. It is commonly used in navigation systems, robotics, and other orientation-sensitive devices.

Key Features:

• 3-axis magnetometer sensor (X, Y, Z axes)
• High sensitivity to magnetic fields
• Digital output for easy integration with microcontrollers
• Low power consumption
• Built-in temperature sensor for compensation
• SPI or I2C communication interface
• Compact and lightweight design

Technical Specifications:

• Sensor Type: Magnetometer
• Axes: 3-axis (X, Y, Z)
• Output Interface: SPI or I2C
• Operating Voltage: +2.4V to +3.6V
• Measurement Range: ±1200 µT
• Power Consumption: 10 µA max.
• Operating Temperature Range: -30°C to +85°C

Applications:

• Orientation and heading detection
• Navigation systems
• Robotics
