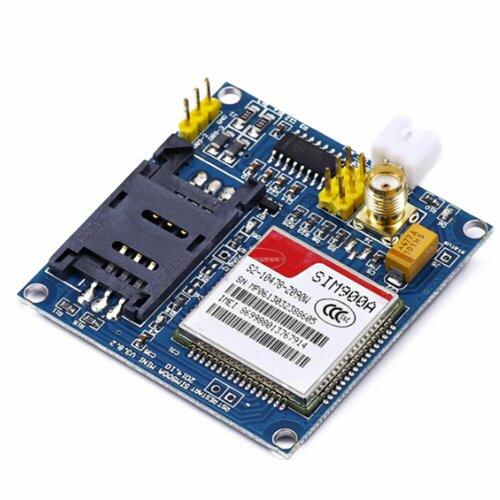

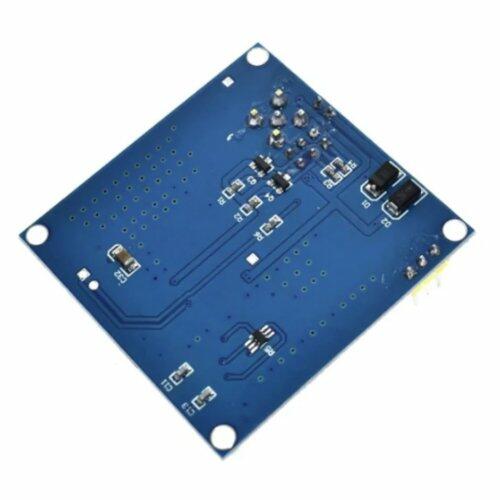

SIM900A GSM Modem With SMA AntennaSee More
The SIM900A GSM modem is a communication device that allows you to establish a GSM (Global System for Mobile Communications) connection to send and receive data, including text messages and calls, over the cellular network. It is commonly used in various applications, including remote monitoring, IoT (Internet of Things) projects, and SMS-based systems.
Key Features of The SIM900A GSM module:GSM Communication: The SIM900A module provides GSM communication capabilities, allowing you to connect to mobile networks for data transmission and voice communication.
SMA Antenna: The SMA antenna connector is used to attach an external antenna to the modem. This is particularly useful in situations where you need to improve signal reception, such as in remote or shielded areas.
SIM Card Slot: The module typically includes a SIM card slot where you can insert a GSM SIM card. The SIM card is necessary for authenticating your device on the mobile network.
Serial Communication: The SIM900A communicates with a microcontroller or computer using serial communication (UART). You send AT commands to the module to control its functions and retrieve data.
Voltage Input: The module usually requires a DC power supply voltage within a specified range, often around 3.4V to 4.5V, to operate properly.
Digital and Analog I/O Pins: Some versions of the module may provide digital and analog pins that allow you to interface with external sensors or devices.
SMS and Call Functions: You can use the SIM900A to send and receive SMS messages and make or receive phone calls. It can be programmed to perform specific actions based on received SMS commands.
Data Transmission: The module supports data transmission over GPRS (General Packet Radio Service) and can be used for internet connectivity in addition to SMS and voice communication.
